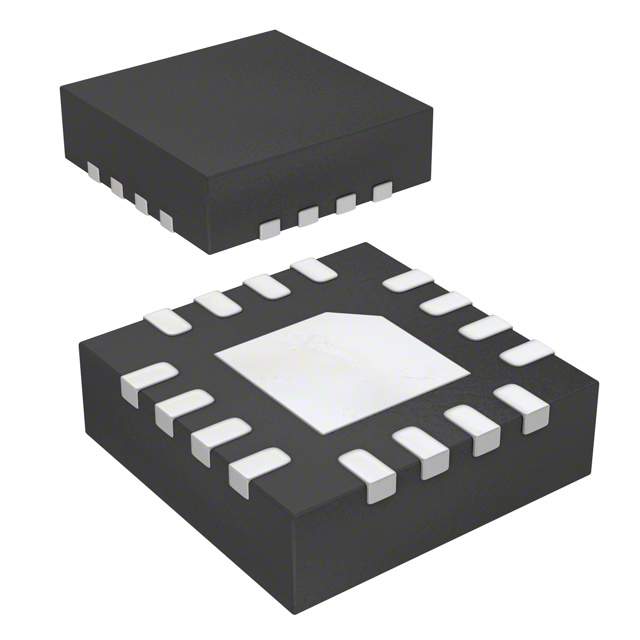

| Part Number | HMC347LP3 | HMC547LP3 | HMC348LP3 | HMC347LP3E | HMC344LP3 | HMC345LP3 |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| RF Type | General Purpose | General Purpose | Cellular, CATV | General Purpose | WLAN | General Purpose |
| Topology | Absorptive | Absorptive | Absorptive | Absorptive | Absorptive | Absorptive |
| Circuit | SPDT | SPDT | SPDT | SPDT | SP4T | SP4T |
| Frequency Range | 0Hz ~ 14GHz | 0Hz ~ 20GHz | 0Hz ~ 2.5GHz | 0Hz ~ 14GHz | 0Hz ~ 8GHz | 0Hz ~ 8GHz |
| Isolation | 38dB | 38dB | 50dB | 38dB | 40dB | 32dB |
| Insertion Loss | 1.9dB | 2dB | 0.7dB | 1.9dB | 1.8dB | 2.4dB |
| Test Frequency | 14GHz | 20GHz | 2.5GHz | 14GHz | 6GHz | 8GHz |
| P1dB | 23dBm | 23dBm | 28dbm | 23dBm | 21dBm | 21dBm |
| IIP3 | 43dBm | 45dBm (min) | 51dBm | 43dBm | 40dBm | 45dBm (min) |
| Features | - | - | - | - | - | - |
| Impedance | 50Ohm | 50Ohm | 50Ohm, 75Ohm | 50Ohm | 50Ohm | 50Ohm, 75Ohm |
| Voltage - Supply | - | - | 4.5V ~ 5.5V | - | - | 5V |
| Operating Temperature | -55°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -55°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) | 16-QFN (3x3) | 16-QFN (3x3) | 16-QFN (3x3) | 16-QFN (3x3) | 16-QFN (3x3) |
