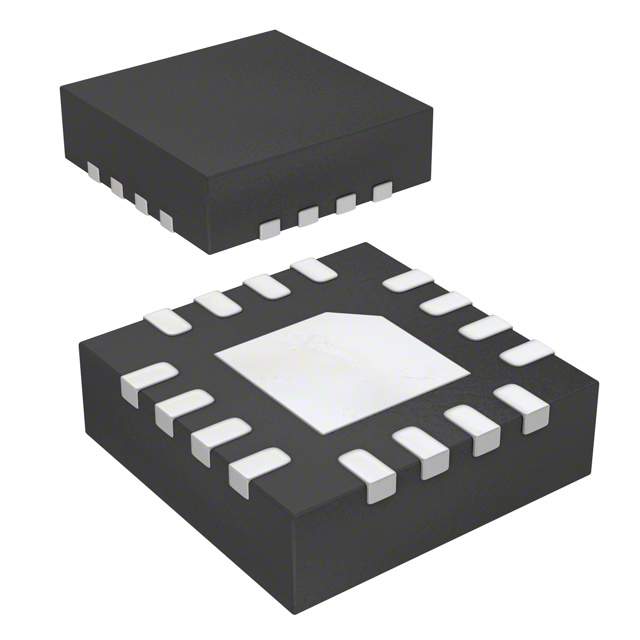

| Part Number | HMC345LP3 | HMC347LP3 | HMC348LP3 | HMC345LP3E | HMC344LP3 |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| RF Type | General Purpose | General Purpose | Cellular, CATV | General Purpose | WLAN |
| Topology | Absorptive | Absorptive | Absorptive | Absorptive | Absorptive |
| Circuit | SP4T | SPDT | SPDT | SP4T | SP4T |
| Frequency Range | 0Hz ~ 8GHz | 0Hz ~ 14GHz | 0Hz ~ 2.5GHz | 0Hz ~ 8GHz | 0Hz ~ 8GHz |
| Isolation | 32dB | 38dB | 50dB | 32dB | 40dB |
| Insertion Loss | 2.4dB | 1.9dB | 0.7dB | 2.4dB | 1.8dB |
| Test Frequency | 8GHz | 14GHz | 2.5GHz | 8GHz | 6GHz |
| P1dB | 21dBm | 23dBm | 28dbm | 21dBm | 21dBm |
| IIP3 | 45dBm (min) | 43dBm | 51dBm | 45dBm | 40dBm |
| Features | - | - | - | - | - |
| Impedance | 50Ohm, 75Ohm | 50Ohm | 50Ohm, 75Ohm | 50Ohm, 75Ohm | 50Ohm |
| Voltage - Supply | 5V | - | 4.5V ~ 5.5V | 5V | - |
| Operating Temperature | -40°C ~ 85°C | -55°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) | 16-QFN (3x3) | 16-QFN (3x3) | 16-QFN (3x3) | 16-QFN (3x3) |
