Please send RFQ , we will respond immediately.

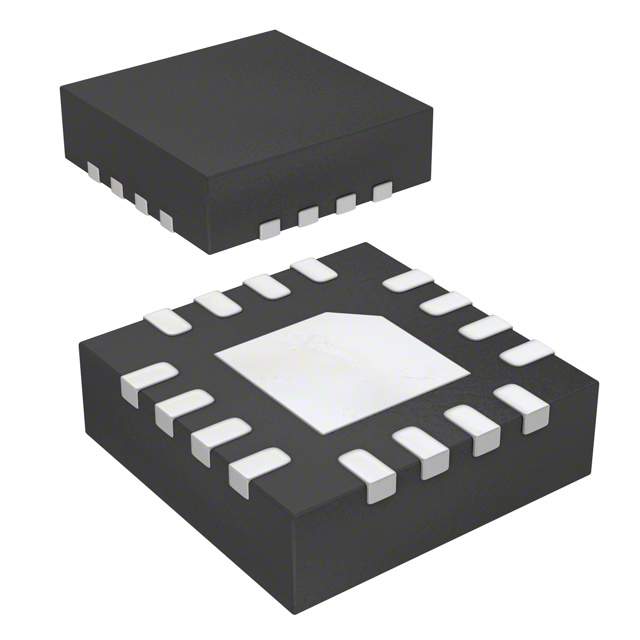

| Part Number | HMC345ALP3E | HMC347ALP3E | HMC345LP3E | HMC344ALP3E |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Obsolete | Active |
| RF Type | - | VSAT | General Purpose | VSAT |
| Topology | Absorptive | Absorptive | Absorptive | Absorptive |
| Circuit | SP4T | SPDT | SP4T | SP4T |
| Frequency Range | 0Hz ~ 8GHz | 0Hz ~ 14GHz | 0Hz ~ 8GHz | 0Hz ~ 8GHz |
| Isolation | 33dB | 38dB | 32dB | 35dB |
| Insertion Loss | 2.4dB | 1.9dB | 2.4dB | 1.9dB |
| Test Frequency | 8GHz | 14GHz | 8GHz | 4GHz |
| P1dB | 28dbm | 23dBm | 21dBm | - |
| IIP3 | 43dBm | 43dBm | 45dBm | 40dBm |
| Features | - | - | - | - |
| Impedance | 50Ohm | 50Ohm | 50Ohm, 75Ohm | 50Ohm |
| Voltage - Supply | 5V | - | 5V | - |
| Operating Temperature | -40°C ~ 85°C | -55°C ~ 85°C | -40°C ~ 85°C | -55°C ~ 85°C |
| Package / Case | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) | 16-QFN (3x3) | 16-QFN (3x3) | 16-QFN (3x3) |
