Please send RFQ , we will respond immediately.
| Part Number | HMC321LP4E | HMC322LP4E | HMC321ALP4E | HMC321LP4 |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Obsolete | Active | Obsolete |
| RF Type | General Purpose | General Purpose | - | General Purpose |
| Topology | Absorptive | Absorptive | Absorptive | Absorptive |
| Circuit | SP8T | SP8T | SP8T | SP8T |
| Frequency Range | 0Hz ~ 8GHz | 0Hz ~ 8GHz | 0Hz ~ 8GHz | 0Hz ~ 8GHz |
| Isolation | 25dB | 25dB | 25dB | 25dB |
| Insertion Loss | 2.7dB | 2.5dB | 2.7dB | 2.7dB |
| Test Frequency | 8GHz | 8GHz | 8GHz | 8GHz |
| P1dB | 23dBm | 23dBm | 12dBm | 23dBm |
| IIP3 | 40dBm | 40dBm | 40dBm | 40dBm |
| Features | - | - | - | - |
| Impedance | 50Ohm, 75Ohm | 50Ohm, 75Ohm | 50Ohm | 50Ohm, 75Ohm |
| Voltage - Supply | 5V | - | 5V | 5V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |

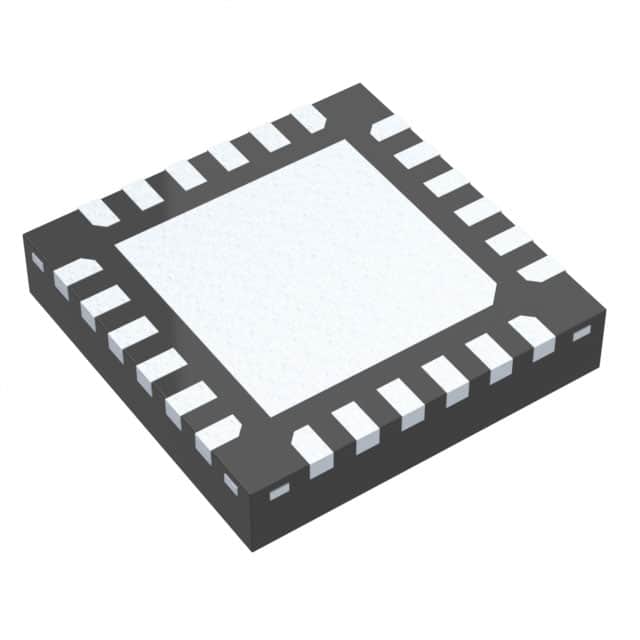

| Package / Case | 24-VFQFN Exposed Pad | 24-VFQFN Exposed Pad | 24-VFQFN Exposed Pad | 24-VFQFN Exposed Pad |
| Supplier Device Package | 24-QFN (4x4) | 24-QFN (4x4) | 24-LFCSP (4x4) | 24-QFN (4x4) |
