| Part Number | HMC232LP4E | HMC232ALP4E | HMC232LP4 |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Active | Obsolete |
| RF Type | General Purpose | Radar | General Purpose |
| Topology | Absorptive | Absorptive | Absorptive |
| Circuit | SPDT | SPDT | SPDT |
| Frequency Range | 0Hz ~ 12GHz | 0Hz ~ 12GHz | 0Hz ~ 12GHz |
| Isolation | 42dB | 50dB | 42dB |
| Insertion Loss | 2.7dB | 1.5dB | 2.7dB |
| Test Frequency | 12GHz | 6GHz | 12GHz |
| P1dB | 27dBm | - | 27dBm |
| IIP3 | 50dBm | 48dBm | 50dBm (min) |
| Features | - | - | - |
| Impedance | 50Ohm | 50Ohm | 50Ohm |
| Voltage - Supply | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |

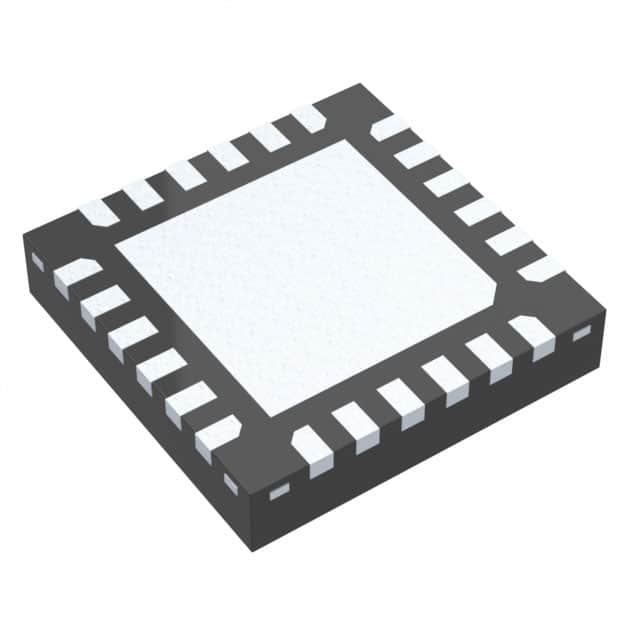

| Package / Case | 24-VFQFN Exposed Pad | 24-VFQFN Exposed Pad | 24-VFQFN Exposed Pad |
| Supplier Device Package | 24-QFN (4x4) | 24-QFN (4x4) | 24-QFN (4x4) |
