| Part Number | HMC1169LP5E | HMC1160LP5E | HMC1162LP5E | HMC1164LP5E | HMC1166LP5E | HMC1167LP5E | HMC1168LP5E |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Frequency Range | 6.46 ~ 7.035GHz, 12.92 ~ 14.07GHz | 4.225 ~ 4.65GHz, 8.45 ~ 9.30GHz | 4.625 ~ 5.050GHz, 9.25 ~ 10.10GHz | 5.19 ~ 5.65GHz, 10.38 ~ 11.30GHz | 5.705 ~ 6.31GHz, 11.41 ~ 12.62GHz | 6.085 ~ 6.665GHz, 12.17 ~ 13.33GHz | 6.235 ~ 6.86GHz, 12.47 ~ 13.72GHz |
| Frequency - Center | 6.7475GHz, 13.495GHz | 4.4375GHz, 8.875GHz | 4.8375GHz, 9.675GHz | 5.42GHz, 10.84GHz | 6.0075GHz, 12.015GHz | 6.375GHz, 12.75GHz | 6.5475GHz, 13.095GHz |
| Voltage - Supply | 5V | 5V | 5V | 5V | 5V | 5V | 5V |
| Tuning Voltage (VDC) | 2 V ~ 13 V | 2 V ~ 13 V | 2 V ~ 13 V | 2 V ~ 13 V | 2 V ~ 13 V | 2 V ~ 13 V | 2 V ~ 13 V |
| 2nd Harmonic, Typ (dBc) | 22 | 18 | 14 | 20 | 20 | 20 | 17 |
| Icc Max | 260mA | 325mA | 310mA | 290mA | 270mA | 250mA | 240mA |
| Pushing (MHz/V) | 2 | 5.5 | 6 | 8 | 5 | 2 | 2 |
| Power (dBm) | 3 ±4, 11 ±4 | 4±4, 13±4 | 7.5±4.5, 11±4 | 8±4 | 4.5±4.5, 11±4 | 3.5±4.5, 11±4 | 2.5 ±3.5, 10.5±3.5 |
| Phase Noise Typ (dBc/Hz) | -86 | -110 | -110 | -110 | -89 | -86 | -85 |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |

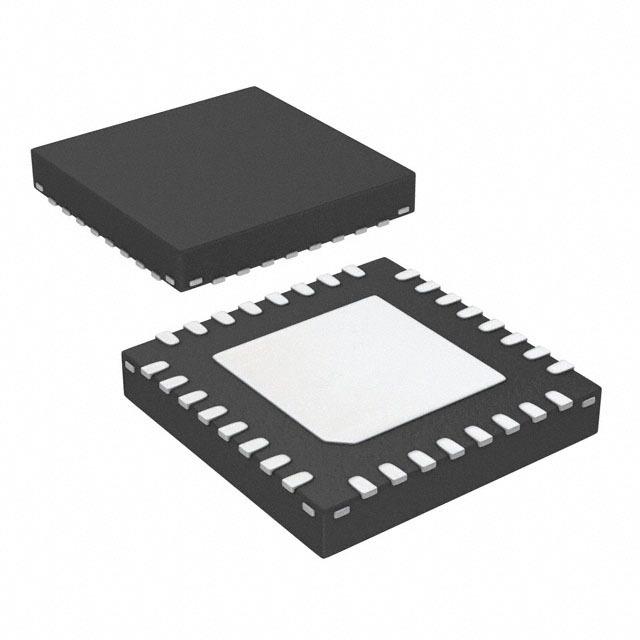

| Package / Case | 32-VFQFN Exposed Pad, CSP | 32-VFQFN Exposed Pad, CSP | 32-VFQFN Exposed Pad, CSP | 32-VFQFN Exposed Pad, CSP | 32-VFQFN Exposed Pad, CSP | 32-VFQFN Exposed Pad, CSP | 32-VFQFN Exposed Pad, CSP |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
