Please send RFQ , we will respond immediately.

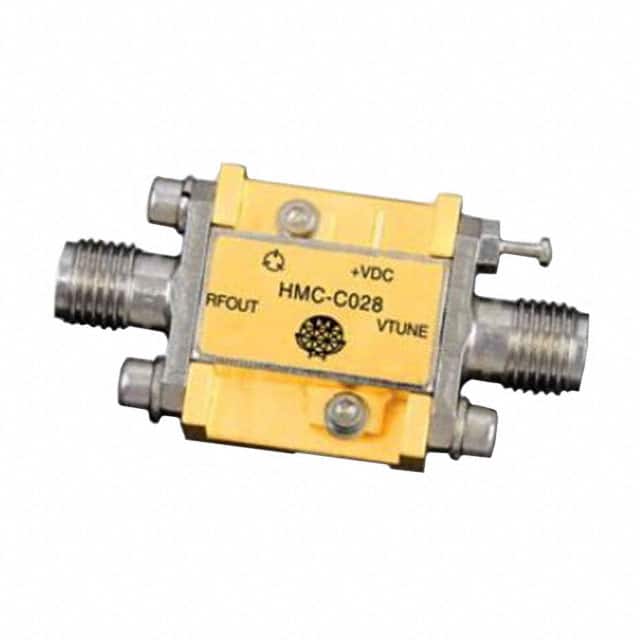

| Part Number | HMC-C028 | HMC-C048 | HMC-C029 | HMC-C038 | HMC-C020 | HMC-C021 | HMC-C024 | HMC-C026 | HMC-C027 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Last Time Buy | Active | Obsolete | Obsolete | Obsolete | Obsolete | Active | Active | Obsolete |
| Frequency | 4GHz ~ 8GHz | 5GHz ~ 9GHz | 5GHz ~ 10GHz | 2GHz ~ 35GHz | 17GHz ~ 24GHz | 21GHz ~ 31GHz | 10MHz ~ 20GHz | 2GHz ~ 20GHz | 29GHz ~ 36GHz |
| P1dB | - | 14.8dBm | 20dBm | 18dBm | 24dBm | 23dBm | 24dBm | 26dBm | 11dBm |
| Gain | - | 22.5dB | - | 12dB | 22dB | 16dB | 16dB | 31dB | 20dB |
| Noise Figure | - | 1.75dB | - | 6dB | 4.5dB | 5dB | 3.5dB | 3.5dB | 2.9dB |
| RF Type | Radar | VSAT | Radar | VSAT | VSAT | VSAT | VSAT | VSAT | VSAT |
| Voltage - Supply | 8V ~ 15V | 12V | 8V ~ 15V | 11V ~ 16V | 8V ~ 15V | 8V ~ 15V | 11V ~ 16V | 11V ~ 16V | 3V |
| Current - Supply | 185mA | 105mA | 195mA | 92mA | 250mA | 215mA | 225mA | 400mA | 80mA |
| Test Frequency | 4GHz ~ 8GHz | 5GHz | - | - | 17GHz ~ 20GHz | - | - | 2GHz ~ 20GHz | - |
| Mounting Type | Connector Mount | Connector Mount | - | Connector Mount | Connector Mount | Connector Mount | Connector Mount | Connector Mount | Connector Mount |
| Package / Case | Module, SMA Connectors | Module, SMA Connectors | Module | Module, SMA Connectors | Module, SMA Connectors | Module, SMA Connectors | Module, SMA Connectors | Module, SMA Connectors | Module, SMA Connectors |
| Supplier Device Package | Module | Module | - | Module | Module | Module | Module | Module | Module |
