Please send RFQ , we will respond immediately.

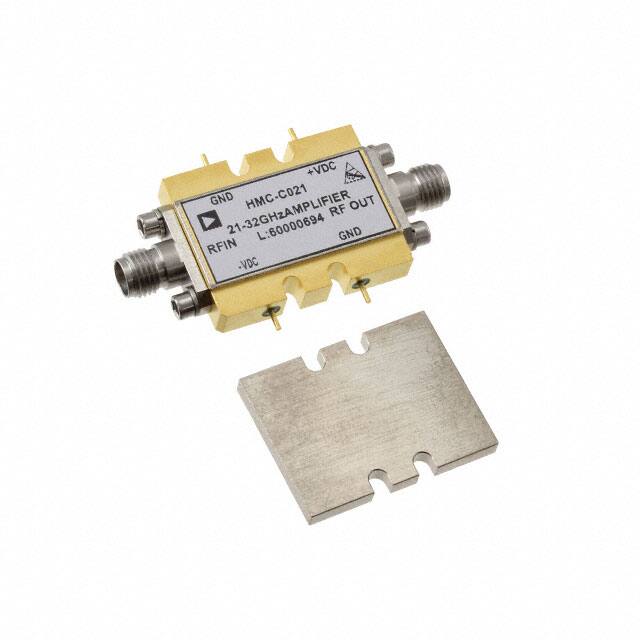

| Part Number | HMC-C021 | HMC-C028 | HMC-C024 | HMC-C026 | HMC-C029 | HMC-C027 | HMC-C020 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Last Time Buy | Active | Active | Obsolete | Obsolete | Obsolete |
| Frequency | 21GHz ~ 31GHz | 4GHz ~ 8GHz | 10MHz ~ 20GHz | 2GHz ~ 20GHz | 5GHz ~ 10GHz | 29GHz ~ 36GHz | 17GHz ~ 24GHz |
| P1dB | 23dBm | - | 24dBm | 26dBm | 20dBm | 11dBm | 24dBm |
| Gain | 16dB | - | 16dB | 31dB | - | 20dB | 22dB |
| Noise Figure | 5dB | - | 3.5dB | 3.5dB | - | 2.9dB | 4.5dB |
| RF Type | VSAT | Radar | VSAT | VSAT | Radar | VSAT | VSAT |
| Voltage - Supply | 8V ~ 15V | 8V ~ 15V | 11V ~ 16V | 11V ~ 16V | 8V ~ 15V | 3V | 8V ~ 15V |
| Current - Supply | 215mA | 185mA | 225mA | 400mA | 195mA | 80mA | 250mA |
| Test Frequency | - | 4GHz ~ 8GHz | - | 2GHz ~ 20GHz | - | - | 17GHz ~ 20GHz |
| Mounting Type | Connector Mount | Connector Mount | Connector Mount | Connector Mount | - | Connector Mount | Connector Mount |
| Package / Case | Module, SMA Connectors | Module, SMA Connectors | Module, SMA Connectors | Module, SMA Connectors | Module | Module, SMA Connectors | Module, SMA Connectors |
| Supplier Device Package | Module | Module | Module | Module | - | Module | Module |
