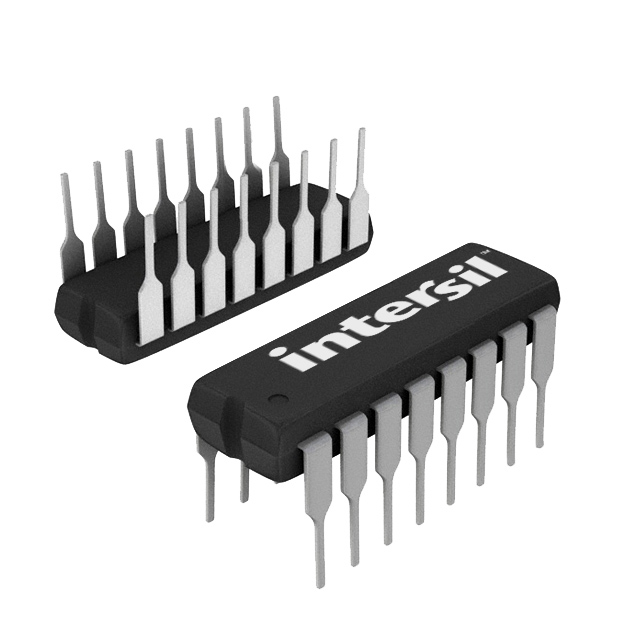

| Part Number | HI1-0201HS-2 | HI1-0201HS-4 | HI1-0201HS-5 |
|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete |
| Switch Circuit | SPST - NC | SPST - NC | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 | 1:1 |
| Number of Circuits | 4 | 4 | 4 |
| On-State Resistance (Max) | 50Ohm | 50Ohm | 50Ohm |
| Channel-to-Channel Matching (ΔRon) | 1.5Ohm | 1.5Ohm | 1.5Ohm |
| Voltage - Supply, Single (V+) | - | - | - |
| Voltage - Supply, Dual (V±) | ±15V | ±15V | ±15V |
| Switch Time (Ton, Toff) (Max) | 50ns, 50ns | 50ns, 50ns | 50ns, 50ns |
| -3db Bandwidth | - | - | - |
| Charge Injection | 10pC | 10pC | 10pC |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 10pF | 10pF, 10pF | 10pF, 10pF |
| Current - Leakage (IS(off)) (Max) | 10nA | 10nA | 10nA |
| Crosstalk | -86dB @ 100kHz | -86dB @ 100kHz | -86dB @ 100kHz |
| Operating Temperature | -55°C ~ 125°C (TA) | -25°C ~ 85°C (TA) | 0°C ~ 75°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CERDIP | 16-CERDIP | 16-CERDIP |
