| Part Number | DS4422N+T&R | DS4424N+T&R | DS4402N+T&R |
|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active |
| Number of Bits | 7 | 7 | 5 |
| Number of D/A Converters | 2 | 4 | 2 |
| Settling Time | - | - | - |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | No | No | No |
| Data Interface | I²C | I²C | I²C |
| Reference Type | - | - | - |
| Voltage - Supply, Analog | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±1 (Max), ±0.5 (Max) | ±1 (Max), ±0.5 (Max) | ±1 (Max), ±0.5 (Max) |
| Architecture | Current Sink, Current Source | Current Sink, Current Source | Current Sink, Current Source |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |

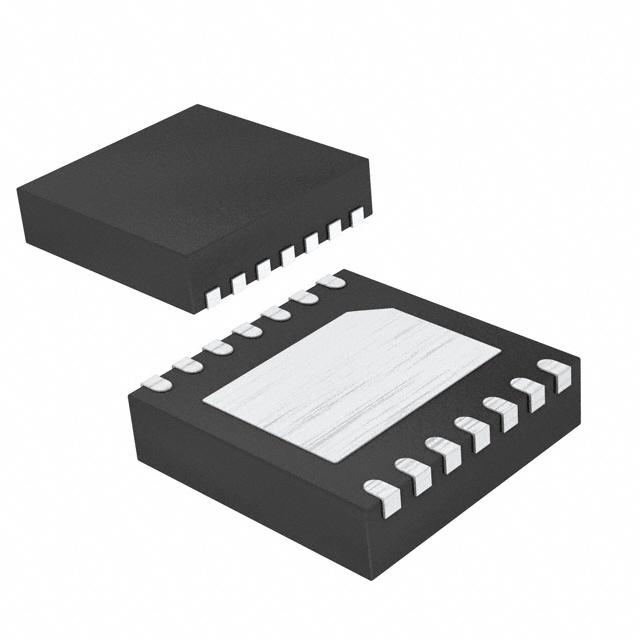

| Package / Case | 14-WFDFN Exposed Pad | 14-WFDFN Exposed Pad | 14-WFDFN Exposed Pad |
| Supplier Device Package | 14-TDFN (3x3) | 14-TDFN (3x3) | 14-TDFN (3x3) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
