DS28E02P-W10+6
  • Share:

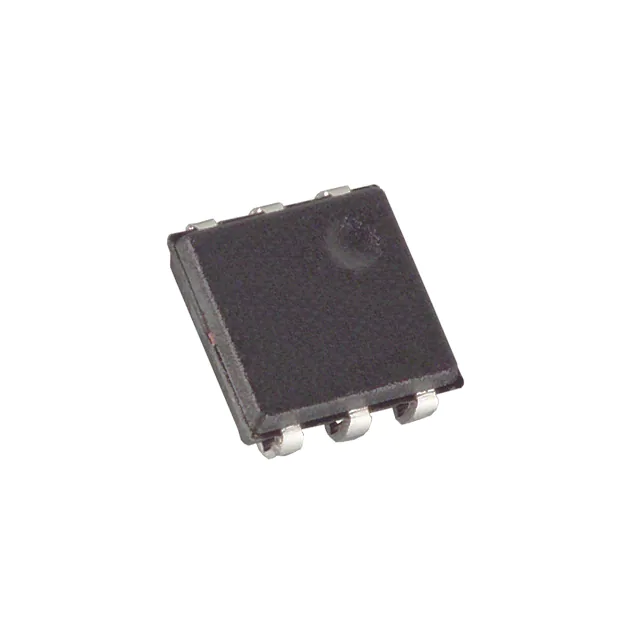

Analog Devices Inc./Maxim Integrated DS28E02P-W10+6

Manufacturer No:
DS28E02P-W10+6
Manufacturer:
Analog Devices Inc./Maxim Integrated
Package:
Tube
Datasheet:
DS28E02P-W10+6 Datasheet
ECAD Model:
-
Description:
IC EEPROM 1KBIT 1-WIRE 6TSOC
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Memory Type:Non-Volatile
Memory Format:EEPROM
Technology:EEPROM
Memory Size:1Kb (256 x 4)
Memory Interface:1-Wire®
Clock Frequency:-
Write Cycle Time - Word, Page:25ms
Access Time:2 µs
Voltage - Supply:1.75V ~ 3.65V
Operating Temperature:-20°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:6-SMD, J-Lead
Supplier Device Package:6-TSOC
0 Remaining View Similar

In Stock

-
152

Please send RFQ , we will respond immediately.
