Please send RFQ , we will respond immediately.

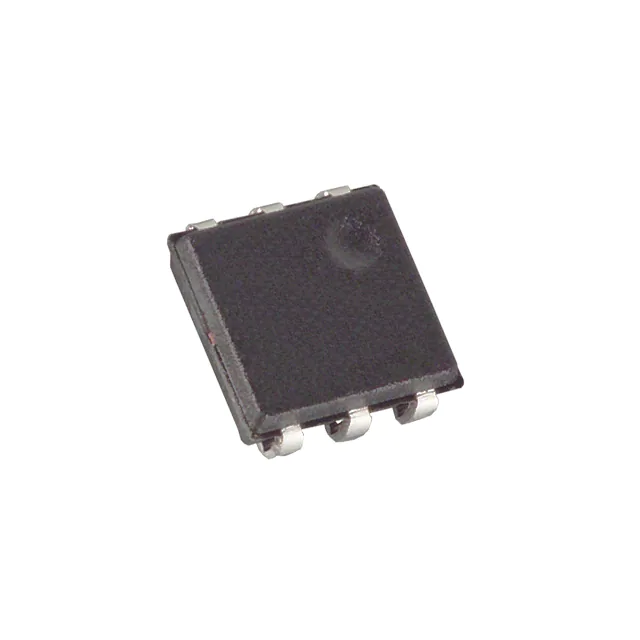

| Part Number | DS28E01P-W0V+1T | DS28E01P-W0G+1T | DS28E01P-W0M+1T | DS28E01P-W0N+1T | DS28E01P-W0P+1T | DS28E01P-W0Q+1T | DS28E01P-W0R+1T | DS28E01P-W0S+1T |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Memory Type | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile |
| Memory Format | EEPROM | EEPROM | EEPROM | EEPROM | EEPROM | EEPROM | EEPROM | EEPROM |
| Technology | EEPROM | EEPROM | EEPROM | EEPROM | EEPROM | EEPROM | EEPROM | EEPROM |
| Memory Size | 1Kb (256 x 4) | 1Kb (256 x 4) | 1Kb (256 x 4) | 1Kb (256 x 4) | 1Kb (256 x 4) | 1Kb (256 x 4) | 1Kb (256 x 4) | 1Kb (256 x 4) |
| Memory Interface | 1-Wire® | 1-Wire® | 1-Wire® | 1-Wire® | 1-Wire® | 1-Wire® | 1-Wire® | 1-Wire® |
| Clock Frequency | - | - | - | - | - | - | - | - |
| Write Cycle Time - Word, Page | - | - | - | - | - | - | 5µs | - |
| Access Time | 2 µs | 2 µs | 2 µs | 2 µs | 2 µs | 2 µs | - | 2 µs |
| Voltage - Supply | 2.85V ~ 5.25V | 2.85V ~ 5.25V | 2.85V ~ 5.25V | 2.85V ~ 5.25V | 2.85V ~ 5.25V | 2.85V ~ 5.25V | 2.8V ~ 5.25V | 2.85V ~ 5.25V |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | - | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-SMD, J-Lead | 6-SMD, J-Lead | 6-SMD, J-Lead | 6-SMD, J-Lead | 6-SMD, J-Lead | 6-SMD, J-Lead | 6-SMD, J-Lead | 6-SMD, J-Lead |
| Supplier Device Package | 6-TSOC | 6-TSOC | 6-TSOC | 6-TSOC | 6-TSOC | 6-TSOC | 6-TSOC | 6-TSOC |
