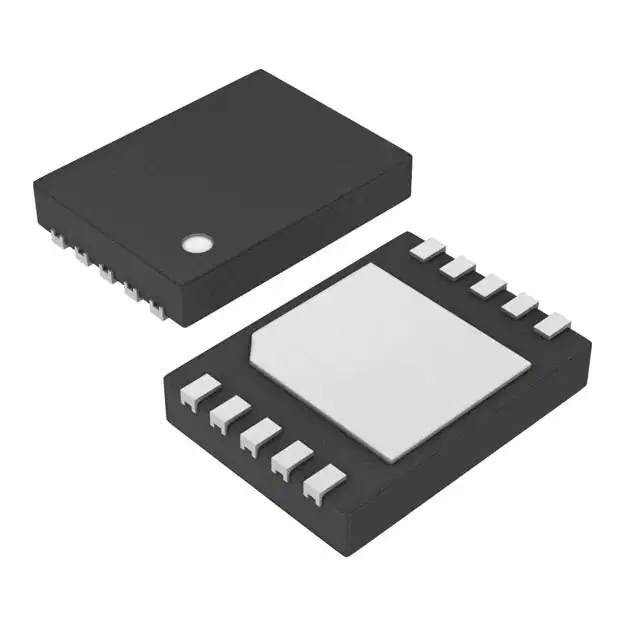

| Part Number | DS2782G+ | DS2786G+ | DS2784G+ | DS2780G+ | DS2781G+ | DS2782E+ |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Active | Active |
| Function | Battery Monitor | Battery Monitor | Multi-Function Controller | Battery Monitor | Battery Monitor | Battery Monitor |
| Battery Chemistry | Lithium Ion/Polymer | Lithium Ion/Polymer | Lithium Ion/Polymer | Lithium Ion/Polymer | Lithium Ion/Polymer | Lithium Ion/Polymer |
| Number of Cells | 1 | - | 1 | 1 | 1 ~ 2 | 1 |
| Fault Protection | - | - | Over Current, Over/Under Voltage, Short Circuit | - | - | - |
| Interface | I²C | I²C | 1-Wire | 1-Wire | 1-Wire | I²C |
| Operating Temperature | -20°C ~ 70°C (TA) | -20°C ~ 70°C (TA) | -40°C ~ 85°C (TA) | -20°C ~ 70°C (TA) | -20°C ~ 70°C (TA) | -20°C ~ 70°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 14-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 8-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 10-TDFN (3x4) | 10-TDFN (3x3) | 14-TDFN (3x5) | 10-TDFN (3x4) | 10-TDFN (3x4) | 8-TSSOP |
