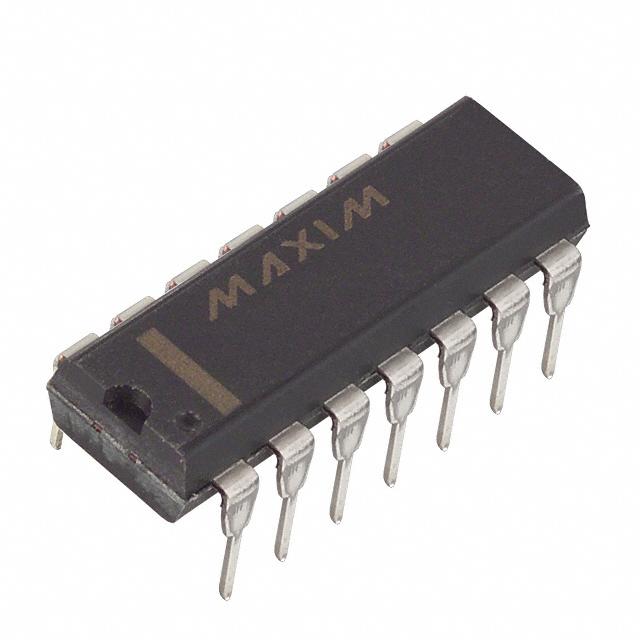

| Part Number | DS1868-100 | DS1868E-100 | DS1868S-100 | DS1869-100 | DS1868-100+ | DS1867-100 | DS1868-10 | DS1868-10+ |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Taper | Linear | Linear | Linear | Linear | Linear | Linear | Linear | Linear |
| Configuration | Potentiometer | Potentiometer | Potentiometer | Potentiometer | - | Potentiometer | Potentiometer | Potentiometer |
| Number of Circuits | 2 | 2 | 2 | 1 | 2 | 2 | 2 | 2 |
| Number of Taps | 256 | 256 | 256 | 64 | 256 | 256 | 256 | 256 |
| Resistance (Ohms) | 100k | 100k | 100k | 100k | 100k | 100k | 10k | 10k |
| Interface | Serial | Serial | Serial | Pushbutton, Serial | - | Serial | Serial | Serial |
| Memory Type | Volatile | Volatile | Volatile | Non-Volatile | Volatile | Non-Volatile | Volatile | Volatile |
| Voltage - Supply | 2.7V ~ 3.3V, 5V | 2.7V ~ 3.3V, 5V | 2.7V ~ 3.3V, 5V | ±2.7V ~ 8V | 2.7V ~ 3.3V, 4.5V ~ 5.5V | 5V | 2.7V ~ 3.3V, 5V | 2.7V ~ 3.3V, 5V |
| Features | Cascade Pin | Cascade Pin | Cascade Pin | - | - | Cascade Pin | Cascade Pin | Cascade Pin |
| Tolerance | ±20% | ±20% | ±20% | ±20% | - | ±20% | ±20% | ±20% |
| Temperature Coefficient (Typ) | 750ppm/°C | 750ppm/°C | 750ppm/°C | 750ppm/°C | 750ppm/°C | 750ppm/°C | 750ppm/°C | 750ppm/°C |
| Mounting Type | Through Hole | Surface Mount | Surface Mount | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | 14-PDIP | 20-TSSOP | 16-SOIC | 8-PDIP | 14-PDIP | 14-PDIP | 14-PDIP | 14-PDIP |
| Package / Case | 14-DIP (0.300", 7.62mm) | 20-TSSOP (0.173", 4.40mm Width) | 16-SOIC (0.295", 7.50mm Width) | 8-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Resistance - Wiper (Ohms) (Typ) | 400 | 400 | 400 | 400 | - | 400 | 400 | 400 |
