DS1857B-050
  • Share:

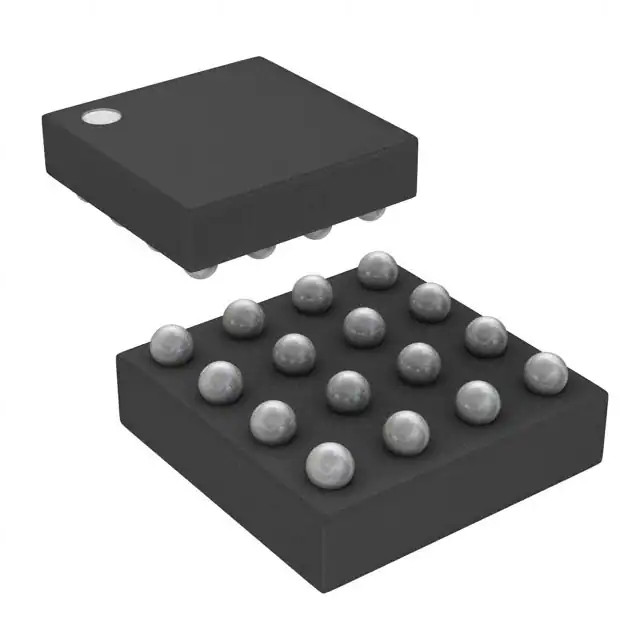

Analog Devices Inc./Maxim Integrated DS1857B-050

Manufacturer No:
DS1857B-050
Manufacturer:
Analog Devices Inc./Maxim Integrated
Package:
Tray
Datasheet:
DS1857B-050 Datasheet
ECAD Model:
-
Description:
IC DGT POT 50KOHM 256TAP 16CSBGA
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Taper:Linear
Configuration:Potentiometer
Number of Circuits:2
Number of Taps:256
Resistance (Ohms):50k
Interface:I²C
Memory Type:Non-Volatile
Voltage - Supply:3V ~ 5.5V
Features:Selectable Address
Tolerance:-
Temperature Coefficient (Typ):50ppm/°C
Mounting Type:Surface Mount
Supplier Device Package:16-CSBGA (4x4)
Package / Case:16-LBGA, CSPBGA
Operating Temperature:-40°C ~ 95°C
Resistance - Wiper (Ohms) (Typ):-
0 Remaining View Similar

In Stock

-
143

Please send RFQ , we will respond immediately.

Similar Products

Part Number DS1857B-050 DS1857E-050   DS1858B-050   DS1859B-050   DS1857B-050+   DS1847B-050   DS1854B-050   DS1855B-050
Manufacturer Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete Active Obsolete Active
Taper Linear Linear Linear Linear Linear - Linear -
Configuration Potentiometer Potentiometer Rheostat Rheostat Potentiometer - Rheostat -
Number of Circuits 2 2 2 2 2 - 2 -
Number of Taps 256 256 256 256 256 - 256 -
Resistance (Ohms) 50k 50k 50k 50k 50k - 50k -
Interface I²C I²C I²C I²C I²C - I²C -
Memory Type Non-Volatile Non-Volatile Non-Volatile Non-Volatile Non-Volatile - Non-Volatile -
Voltage - Supply 3V ~ 5.5V 3V ~ 5.5V 3V ~ 5.5V 2.85V ~ 5.5V 3V ~ 5.5V - 3V ~ 5.5V -
Features Selectable Address Selectable Address Selectable Address, Temperature Sensor Selectable Address, Temperature Sensor Selectable Address - Temperature Sensor -
Tolerance - - ±20% ±20% - - ±20% -
Temperature Coefficient (Typ) 50ppm/°C 50ppm/°C 50ppm/°C 50ppm/°C 50ppm/°C - 50ppm/°C -
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount - Surface Mount -
Supplier Device Package 16-CSBGA (4x4) 16-TSSOP 16-CSBGA (4x4) 16-CSBGA (4x4) 16-CSBGA (4x4) - 16-CSBGA (4x4) -
Package / Case 16-LBGA, CSPBGA 16-TSSOP (0.173", 4.40mm Width) 16-LBGA, CSPBGA 16-LBGA, CSPBGA 16-LBGA, CSPBGA - 16-LBGA, CSPBGA -
Operating Temperature -40°C ~ 95°C -40°C ~ 95°C -40°C ~ 95°C -40°C ~ 95°C -40°C ~ 95°C - -40°C ~ 95°C -
Resistance - Wiper (Ohms) (Typ) - - - - - - - -
