Please send RFQ , we will respond immediately.

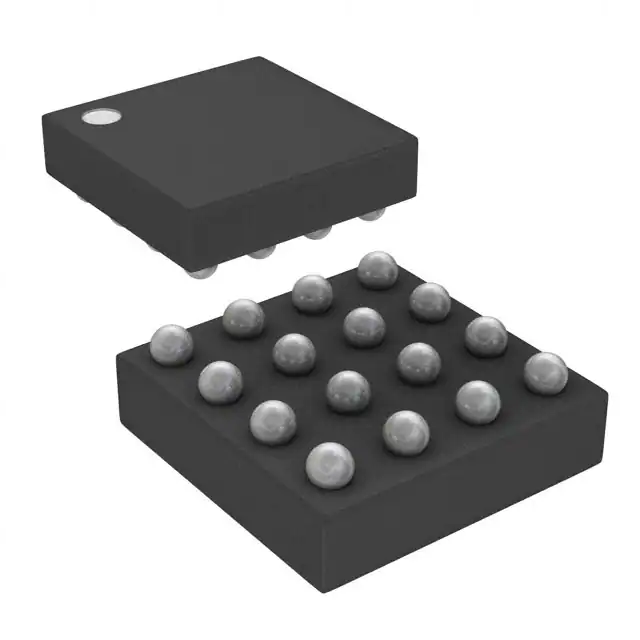

| Part Number | DS1845B-050+T&R | DS1845E-050+T&R | DS1847B-050+T&R | DS1848B-050+T&R | DS1845B-010+T&R |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Active |
| Taper | Linear | Linear | Linear | Linear | Linear |
| Configuration | Potentiometer | Potentiometer | Rheostat | Rheostat | Potentiometer |
| Number of Circuits | 2 | 2 | 2 | 2 | 2 |
| Number of Taps | 100, 256 | 100, 256 | 256 | 256 | 100, 256 |
| Resistance (Ohms) | 50k | 50k | 50k | 50k | 10k |
| Interface | I²C | I²C | I²C | I²C | I²C |
| Memory Type | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile |
| Voltage - Supply | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 2.7V ~ 5.5V |
| Features | Selectable Address | Selectable Address | Selectable Address, Temperature Sensor | Selectable Address, Temperature Sensor | Selectable Address |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Temperature Coefficient (Typ) | 750ppm/°C | 750ppm/°C | 850ppm/°C | 850ppm/°C | 750ppm/°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 16-CSBGA (4x4) | 14-TSSOP | 16-CSBGA (4x4) | 16-CSBGA (4x4) | 16-CSBGA (4x4) |
| Package / Case | 16-LBGA, CSPBGA | 14-TSSOP (0.173", 4.40mm Width) | 16-LBGA, CSPBGA | 16-LBGA, CSPBGA | 16-LBGA, CSPBGA |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 95°C | -40°C ~ 95°C | -40°C ~ 85°C |
| Resistance - Wiper (Ohms) (Typ) | 500 | 500 | - | - | 500 |
