| Part Number | DS1845B-010 | DS1845B-020 | DS1847B-010 | DS1845E-010 | DS1845B-050 | DS1855B-010 | DS1845B-010+ |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete | Obsolete | Active |
| Taper | Linear | - | - | Linear | Linear | Linear | Linear |
| Configuration | Potentiometer | - | - | Potentiometer | Potentiometer | Potentiometer | Potentiometer |
| Number of Circuits | 2 | - | - | 2 | 2 | 2 | 2 |
| Number of Taps | 100, 256 | - | - | 100, 256 | 100, 256 | 100, 256 | 100, 256 |
| Resistance (Ohms) | 10k | - | - | 10k | 50k | 10k | 10k |
| Interface | I²C | - | - | I²C | I²C | I²C | I²C |
| Memory Type | Non-Volatile | - | - | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile |
| Voltage - Supply | 2.7V ~ 5.5V | - | - | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Features | Selectable Address | - | - | Selectable Address | Selectable Address | Selectable Address | Selectable Address |
| Tolerance | ±20% | - | - | ±20% | ±20% | ±20% | ±20% |
| Temperature Coefficient (Typ) | 750ppm/°C | - | - | 750ppm/°C | 750ppm/°C | 750ppm/°C | 750ppm/°C |
| Mounting Type | Surface Mount | - | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

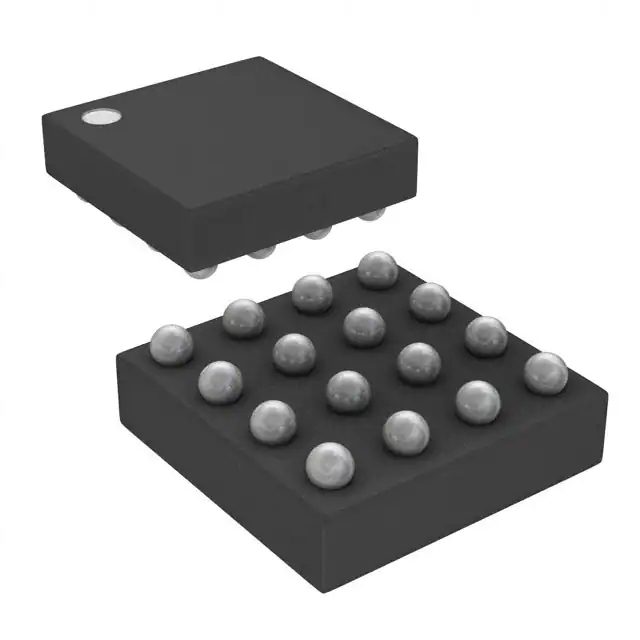

| Supplier Device Package | 16-CSBGA (4x4) | - | - | 14-TSSOP | 16-CSBGA (4x4) | 16-CSBGA (4x4) | 16-CSBGA (4x4) |
| Package / Case | 16-LBGA, CSPBGA | - | - | 14-TSSOP (0.173", 4.40mm Width) | 16-LBGA, CSPBGA | 16-LBGA, CSPBGA | 16-LBGA, CSPBGA |
| Operating Temperature | -40°C ~ 85°C | - | - | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Resistance - Wiper (Ohms) (Typ) | 500 | - | - | 500 | 500 | 400 | 500 |
