Please send RFQ , we will respond immediately.
| Part Number | DS1811-15 | DS1811-5 | DS1813-15 | DS1812-15 | DS1811-15+ | DS1810-15 | DS1811-10 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset |
| Number of Voltages Monitored | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Threshold | 4.13V | 4.62V | 4.13V | 4.13V | 4.13V | 4.12V | 4.35V |
| Output | Open Drain or Open Collector | Open Drain or Open Collector | Open Drain or Open Collector | Push-Pull, Totem Pole | Open Drain or Open Collector | Push-Pull, Totem Pole | Open Drain or Open Collector |
| Reset | Active Low | Active Low | Active Low | Active High | Active Low | Active Low | Active Low |
| Reset Timeout | 100ms Minimum | 100ms Minimum | 100ms Minimum | 100ms Minimum | 100ms Minimum | 100ms Minimum | 100ms Minimum |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |

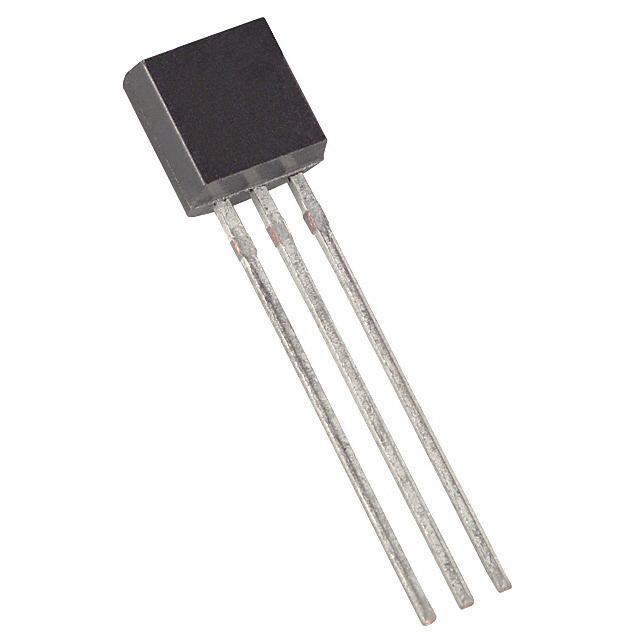

| Package / Case | TO-226-3, TO-92-3 (TO-226AA) | TO-226-3, TO-92-3 (TO-226AA) | TO-226-3, TO-92-3 (TO-226AA) | TO-226-3, TO-92-3 (TO-226AA) | TO-226-3, TO-92-3 (TO-226AA) | TO-226-3, TO-92-3 (TO-226AA) | TO-226-3, TO-92-3 (TO-226AA) |
| Supplier Device Package | TO-92-3 | TO-92-3 | TO-92-3 | TO-92-3 | TO-92-3 | TO-92-3 | TO-92-3 |
