DS1801+
  • Share:

Analog Devices Inc./Maxim Integrated DS1801+

Manufacturer No:
DS1801+
Manufacturer:
Analog Devices Inc./Maxim Integrated
Package:
Tube
Datasheet:
DS1801+ Datasheet
ECAD Model:
-
Description:

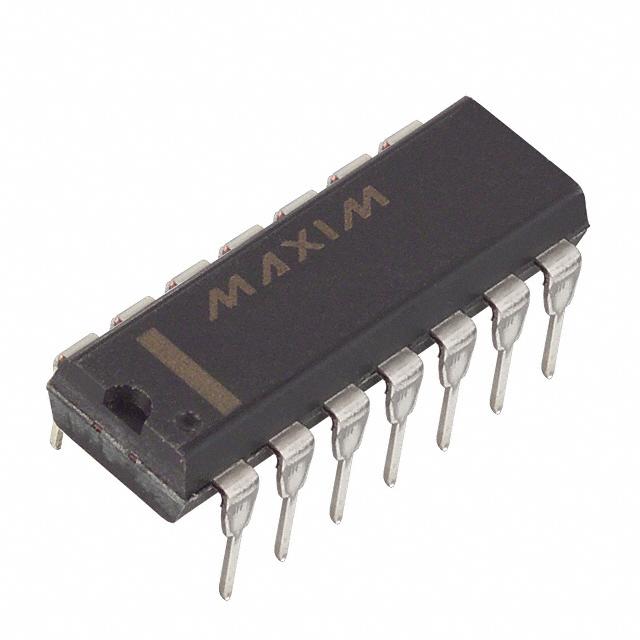

IC DGTL POT 45KOHM 65TAP 14DIP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Taper:Logarithmic
Configuration:Potentiometer
Number of Circuits:2
Number of Taps:65
Resistance (Ohms):45k
Interface:Serial
Memory Type:Volatile
Voltage - Supply:2.7V ~ 5.5V
Features:Cascade Pin, Mute, Zero-Cross Sense
Tolerance:±20%
Temperature Coefficient (Typ):750ppm/°C
Mounting Type:Through Hole
Supplier Device Package:14-PDIP
Package / Case:14-DIP (0.300", 7.62mm)
Operating Temperature:-40°C ~ 85°C
Resistance - Wiper (Ohms) (Typ):400
0 Remaining View Similar

In Stock

$9.56
101

Please send RFQ , we will respond immediately.

Similar Products

Part Number DS1801+ DS1801S+   DS1801S   DS1802+   DS1801
Manufacturer Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated
Product Status Active Active Obsolete Obsolete Obsolete
Taper Logarithmic Logarithmic Logarithmic Logarithmic Logarithmic
Configuration Potentiometer Potentiometer Potentiometer Potentiometer Potentiometer
Number of Circuits 2 2 2 2 2
Number of Taps 65 65 65 65 65
Resistance (Ohms) 45k 45k 45k 45k 45k
Interface Serial Serial Serial Pushbutton, Serial Serial
Memory Type Volatile Volatile Volatile Volatile Volatile
Voltage - Supply 2.7V ~ 5.5V 2.7V ~ 5.5V 2.7V ~ 5.5V 2.7V ~ 5.5V 2.7V ~ 5.5V
Features Cascade Pin, Mute, Zero-Cross Sense Cascade Pin, Mute, Zero-Cross Sense Cascade Pin, Mute, Zero-Cross Sense Cascade Pin, Mute, Zero-Cross Sense Cascade Pin, Mute, Zero-Cross Sense
Tolerance ±20% ±20% ±20% ±20% ±20%
Temperature Coefficient (Typ) 750ppm/°C 750ppm/°C 750ppm/°C 750ppm/°C 750ppm/°C
Mounting Type Through Hole Surface Mount Surface Mount Through Hole Through Hole
Supplier Device Package 14-PDIP 16-SOIC 16-SOIC 20-PDIP 14-PDIP
Package / Case 14-DIP (0.300", 7.62mm) 16-SOIC (0.295", 7.50mm Width) 16-SOIC (0.295", 7.50mm Width) 20-DIP (0.300", 7.62mm) 14-DIP (0.300", 7.62mm)
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
Resistance - Wiper (Ohms) (Typ) 400 400 400 400 400
