Please send RFQ , we will respond immediately.

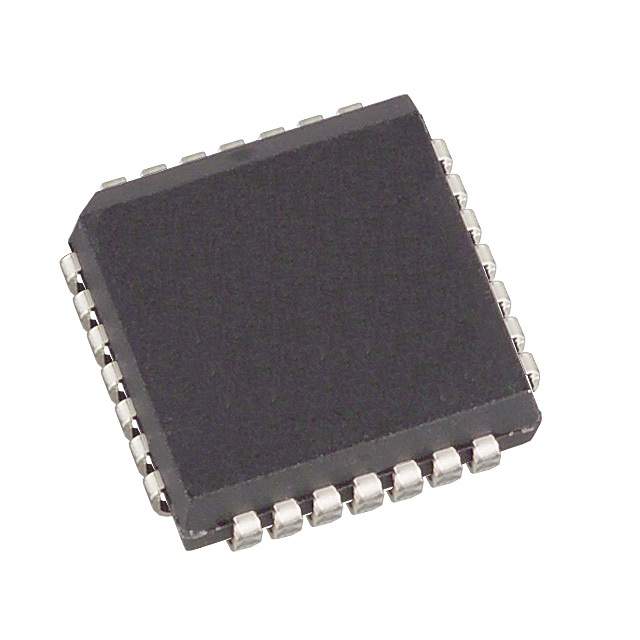

| Part Number | DS1685QN-5/T&R | DS1685SN-5/T&R | DS1685EN-5/T&R | DS1685Q-5/T&R |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Clock/Calendar | Clock/Calendar | Clock/Calendar | Clock/Calendar |
| Features | Alarm, NVSRAM, Square Wave Output, Y2K | Alarm, NVSRAM, Square Wave Output, Y2K | Alarm, NVSRAM, Square Wave Output, Y2K | Alarm, NVSRAM, Square Wave Output, Y2K |
| Memory Size | 242B | 242B | 242B | 242B |
| Time Format | HH:MM:SS (12/24 hr) | HH:MM:SS (12/24 hr) | HH:MM:SS (12/24 hr) | HH:MM:SS (12/24 hr) |
| Date Format | YY-MM-DD-dd | YY-MM-DD-dd | YY-MM-DD-dd | YY-MM-DD-dd |
| Interface | Parallel | Parallel | Parallel | Parallel |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Voltage - Supply, Battery | 2.5V ~ 3.7V | 2.5V ~ 3.7V | 2.5V ~ 3.7V | 2.5V ~ 3.7V |
| Current - Timekeeping (Max) | 3mA @ 5V | 3mA @ 5V | 3mA @ 5V | 3mA @ 5V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | 0°C ~ 70°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 28-LCC (J-Lead) | 24-SOIC (0.295", 7.50mm Width) | 24-TSSOP (0.173", 4.40mm Width) | 28-LCC (J-Lead) |
| Supplier Device Package | 28-PLCC (11.51x11.51) | 24-SOIC | 24-TSSOP | 28-PLCC (11.51x11.51) |
