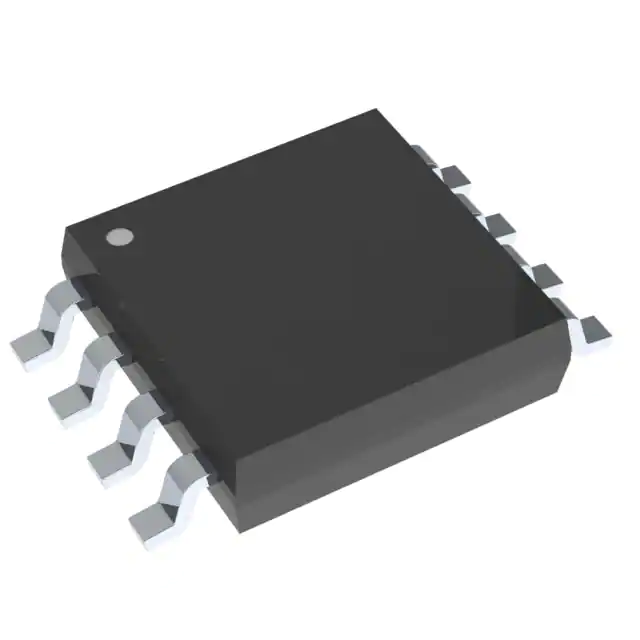

| Part Number | DS1669S-50 | DS1669S-50+ | DS1666S-50 | DS1669-50 | DS1669S-10 |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Taper | Linear | - | Pseudo-Logarithmic | Linear | Linear |
| Configuration | Potentiometer | - | Potentiometer | Potentiometer | Potentiometer |
| Number of Circuits | 1 | - | 1 | 1 | 1 |
| Number of Taps | 64 | - | 128 | 64 | 64 |
| Resistance (Ohms) | 50k | - | 50k | 50k | 10k |
| Interface | Up/Down (UP, DN) | - | Up/Down (U/D, INC, CS) | Up/Down (UP, DN) | Up/Down (UP, DN) |
| Memory Type | Non-Volatile | - | Volatile | Non-Volatile | Non-Volatile |
| Voltage - Supply | ±4.5V ~ 8V | - | 5V | ±4.5V ~ 8V | ±4.5V ~ 8V |
| Features | - | - | - | - | - |
| Tolerance | ±20% | - | ±20% | ±20% | ±20% |
| Temperature Coefficient (Typ) | 750ppm/°C | - | 750ppm/°C | 750ppm/°C | 750ppm/°C |
| Mounting Type | Surface Mount | - | Surface Mount | Through Hole | Surface Mount |
| Supplier Device Package | 8-SOIC | - | 16-SOIC | 8-PDIP | 8-SOIC |
| Package / Case | 8-SOIC (0.209", 5.30mm Width) | - | 16-SOIC (0.295", 7.50mm Width) | 8-DIP (0.300", 7.62mm) | 8-SOIC (0.209", 5.30mm Width) |
| Operating Temperature | -40°C ~ 85°C | - | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Resistance - Wiper (Ohms) (Typ) | 400 | - | 350 | 400 | 400 |
