Please send RFQ , we will respond immediately.

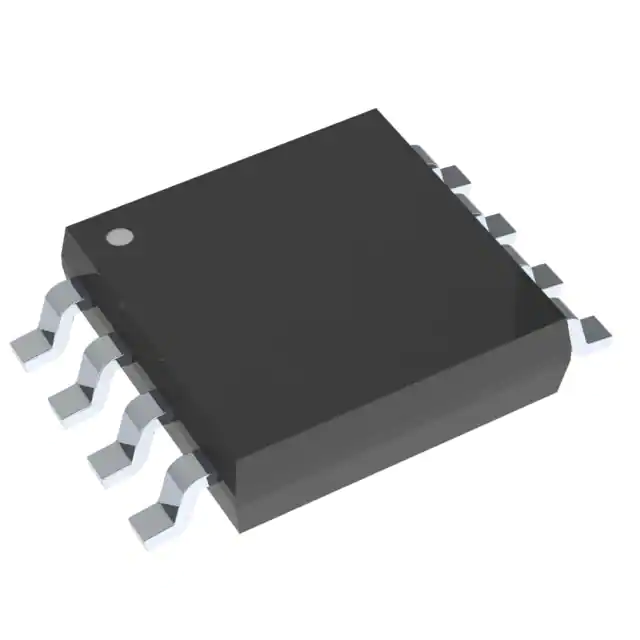

| Part Number | DS1669S-10/T&R | DS1666S-10/T&R | DS1669S-10+T&R |
|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Obsolete | Obsolete |
| Taper | Linear | Pseudo-Logarithmic | Linear |
| Configuration | Potentiometer | Potentiometer | Potentiometer |
| Number of Circuits | 1 | 1 | 1 |
| Number of Taps | 64 | 128 | 64 |
| Resistance (Ohms) | 10k | 10k | 10k |
| Interface | Up/Down (UP, DN) | Up/Down (U/D, INC, CS) | Up/Down (UP, DN) |
| Memory Type | Non-Volatile | Volatile | Non-Volatile |
| Voltage - Supply | ±4.5V ~ 8V | 5V | ±4.5V ~ 8V |
| Features | - | - | - |
| Tolerance | ±20% | ±20% | ±20% |
| Temperature Coefficient (Typ) | 750ppm/°C | 750ppm/°C | 750ppm/°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-SOIC | 16-SOIC | 8-SOIC |
| Package / Case | 8-SOIC (0.209", 5.30mm Width) | 16-SOIC (0.295", 7.50mm Width) | 8-SOIC (0.209", 5.30mm Width) |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Resistance - Wiper (Ohms) (Typ) | 400 | 350 | 400 |
