Please send RFQ , we will respond immediately.

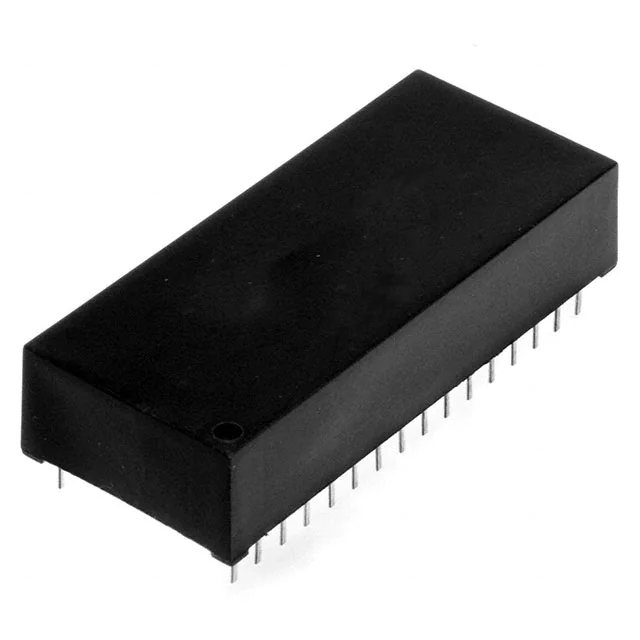

| Part Number | DS1554-70+ | DS1556-70+ | DS1554P-70+ | DS1553-70+ | DS1554-70 |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Obsolete | Obsolete |
| Type | Clock/Calendar | Clock/Calendar | Clock/Calendar | Clock/Calendar | Clock/Calendar |
| Features | Alarm, Leap Year, NVSRAM, Watchdog Timer, Y2K | Alarm, Leap Year, NVSRAM, Watchdog Timer, Y2K | Alarm, Leap Year, NVSRAM, Watchdog Timer, Y2K | Alarm, Leap Year, NVSRAM, Watchdog Timer, Y2K | Alarm, Leap Year, NVSRAM, Watchdog Timer, Y2K |
| Memory Size | 32KB | 128KB | 32KB | 8KB | 32KB |
| Time Format | HH:MM:SS (24 hr) | HH:MM:SS (24 hr) | HH:MM:SS (24 hr) | HH:MM:SS (24 hr) | HH:MM:SS (24 hr) |
| Date Format | YY-MM-DD-dd | YY-MM-DD-dd | YY-MM-DD-dd | YY-MM-DD-dd | YY-MM-DD-dd |
| Interface | Parallel | Parallel | Parallel | Parallel | Parallel |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Voltage - Supply, Battery | - | - | 3V | - | - |
| Current - Timekeeping (Max) | 6mA @ 5V | 6mA @ 5V | 6mA @ 5V | 3mA @ 5V | 6mA @ 5V |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Through Hole | Through Hole | Surface Mount | Through Hole | Through Hole |
| Package / Case | 32-DIP Module (0.600", 15.24mm) | 32-DIP Module (0.600", 15.24mm) | 34-PowerCap™ Module | 28-DIP Module (0.600", 15.24mm) | 32-DIP Module (0.600", 15.24mm) |
| Supplier Device Package | 32-EDIP | 32-EDIP | 34-PowerCap Module | 28-EDIP | 32-EDIP |
