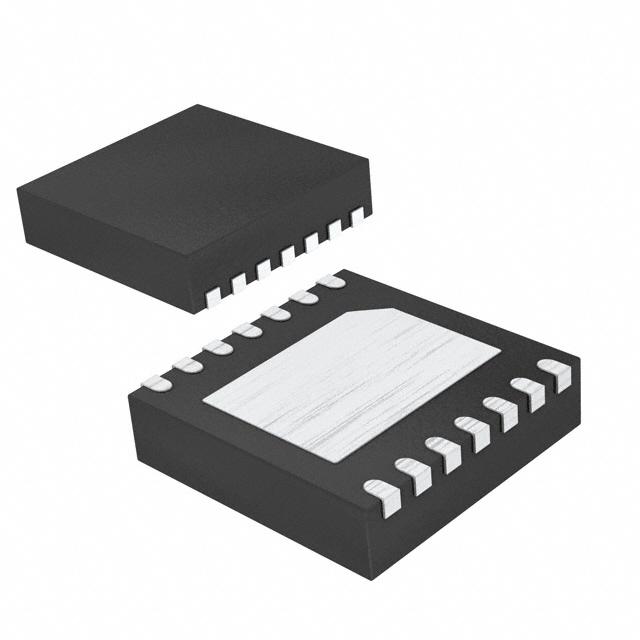

| Part Number | DS1344D-33+ | DS1344E-33+ | DS1343D-33+ | DS1344D-3+ |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active |
| Type | Clock/Calendar | Clock/Calendar | Clock/Calendar | Clock/Calendar |
| Features | Alarm, Leap Year, NVRAM, Square Wave Output, Trickle Charger | Alarm, Leap Year, NVRAM, Square Wave Output, Trickle Charger | Alarm, Leap Year, NVRAM, Square Wave Output, Trickle Charger | Alarm, Leap Year, NVRAM, Square Wave Output, Trickle Charger |
| Memory Size | 96B | 96B | 96B | 96B |
| Time Format | HH:MM:SS (12/24 hr) | HH:MM:SS (12/24 hr) | HH:MM:SS (12/24 hr) | HH:MM:SS (12/24 hr) |
| Date Format | YY-MM-DD-dd | YY-MM-DD-dd | YY-MM-DD-dd | YY-MM-DD-dd |
| Interface | SPI | SPI | SPI | SPI |
| Voltage - Supply | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 2.7V ~ 5.5V |
| Voltage - Supply, Battery | 1.3V ~ 5.5V | 1.3V ~ 5.5V | 1.3V ~ 5.5V | 1.3V ~ 5.5V |
| Current - Timekeeping (Max) | 120µA ~ 160µA @ 3.63V ~ 5.5V | 120µA ~ 160µA @ 3.63V ~ 5.5V | 120µA ~ 160µA @ 3.63V ~ 5.5V | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 14-WFDFN Exposed Pad | 20-TSSOP (0.173", 4.40mm Width) | 14-WFDFN Exposed Pad | 14-WFDFN Exposed Pad |
| Supplier Device Package | 14-TDFN (3x3) | 20-TSSOP | 14-TDFN (3x3) | 14-TDFN (3x3) |
