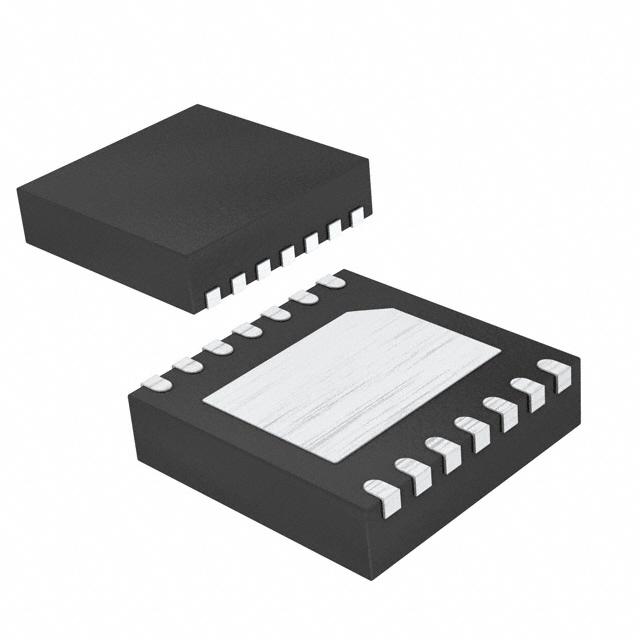

DS1343D-3+T&R
  • Share:

Analog Devices Inc./Maxim Integrated DS1343D-3+T&R

Manufacturer No:
DS1343D-3+T&R
Manufacturer:
Analog Devices Inc./Maxim Integrated
Package:
Tape & Reel (TR)
Datasheet:
DS1343D-3+T&R Datasheet
ECAD Model:
-
Description:
IC RTC CLK/CAL SPI 14TDFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Clock/Calendar
Features:Alarm, Leap Year, NVRAM, Square Wave Output, Trickle Charger
Memory Size:96B
Time Format:HH:MM:SS (12/24 hr)
Date Format:YY-MM-DD-dd
Interface:SPI
Voltage - Supply:2.7V ~ 5.5V
Voltage - Supply, Battery:1.3V ~ 5.5V
Current - Timekeeping (Max):-
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:14-WFDFN Exposed Pad
Supplier Device Package:14-TDFN (3x3)
0 Remaining View Similar

In Stock

$3.06
272

Please send RFQ , we will respond immediately.

Similar Products

Part Number DS1343D-3+T&R DS1343E-3+T&R   DS1343D-33+T&R   DS1344D-3+T&R
Manufacturer Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated
Product Status Active Active Active Active
Type Clock/Calendar Clock/Calendar Clock/Calendar Clock/Calendar
Features Alarm, Leap Year, NVRAM, Square Wave Output, Trickle Charger Alarm, Leap Year, NVRAM, Square Wave Output, Trickle Charger Alarm, Leap Year, NVRAM, Square Wave Output, Trickle Charger Alarm, Leap Year, NVRAM, Square Wave Output, Trickle Charger
Memory Size 96B 96B 96B 96B
Time Format HH:MM:SS (12/24 hr) HH:MM:SS (12/24 hr) HH:MM:SS (12/24 hr) HH:MM:SS (12/24 hr)
Date Format YY-MM-DD-dd YY-MM-DD-dd YY-MM-DD-dd YY-MM-DD-dd
Interface SPI SPI SPI SPI
Voltage - Supply 2.7V ~ 5.5V 2.7V ~ 5.5V 3V ~ 5.5V 2.7V ~ 5.5V
Voltage - Supply, Battery 1.3V ~ 5.5V 1.3V ~ 5.5V 1.3V ~ 5.5V 1.3V ~ 5.5V
Current - Timekeeping (Max) - - 120µA ~ 160µA @ 3.63V ~ 5.5V -
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case 14-WFDFN Exposed Pad 20-TSSOP (0.173", 4.40mm Width) 14-WFDFN Exposed Pad 14-WFDFN Exposed Pad
Supplier Device Package 14-TDFN (3x3) 20-TSSOP 14-TDFN (3x3) 14-TDFN (3x3)
