| Part Number | DS1338U-3+ | DS1338Z-3+ | DS1339U-3+ | DS1338U-33+ | DS1338U-33 | DS1308U-3+ | DS1338U-3 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Obsolete | Active | Obsolete |
| Type | Clock/Calendar | Clock/Calendar | Clock/Calendar | Clock/Calendar | Clock/Calendar | Clock/Calendar | Clock/Calendar |
| Features | Leap Year, NVSRAM, Square Wave Output | Leap Year, NVSRAM, Square Wave Output | Alarm, Leap Year, Square Wave Output, Trickle-Charger | Leap Year, NVSRAM, Square Wave Output | Leap Year, NVSRAM, Square Wave Output | Leap Year, NVSRAM, Square Wave Output | Leap Year, NVSRAM, Square Wave Output |
| Memory Size | 56B | 56B | - | 56B | 56B | 56B | 56B |
| Time Format | HH:MM:SS (12/24 hr) | HH:MM:SS (12/24 hr) | HH:MM:SS (12/24 hr) | HH:MM:SS (12/24 hr) | HH:MM:SS (12/24 hr) | HH:MM:SS (12/24 hr) | HH:MM:SS (12/24 hr) |
| Date Format | YY-MM-DD-dd | YY-MM-DD-dd | YY-MM-DD-dd | YY-MM-DD-dd | YY-MM-DD-dd | YY-MM-DD-dd | YY-MM-DD-dd |
| Interface | I²C, 2-Wire Serial | I²C, 2-Wire Serial | I²C, 2-Wire Serial | I²C, 2-Wire Serial | I²C, 2-Wire Serial | I²C, 2-Wire Serial | I²C, 2-Wire Serial |
| Voltage - Supply | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Voltage - Supply, Battery | 1.3V ~ 3.7V | 1.3V ~ 3.7V | 1.3V ~ 3.7V | 1.3V ~ 3.7V | 1.3V ~ 3.7V | 1.3V ~ 5.5V | 1.3V ~ 3.7V |
| Current - Timekeeping (Max) | 200µA @ 3.3V | 200µA @ 3.3V | 150µA @ 3.3V | 125µA ~ 200µA @ 3.63V ~ 5.5V | 125µA ~ 200µA @ 3.63V ~ 5.5V | - | 200µA @ 3.3V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

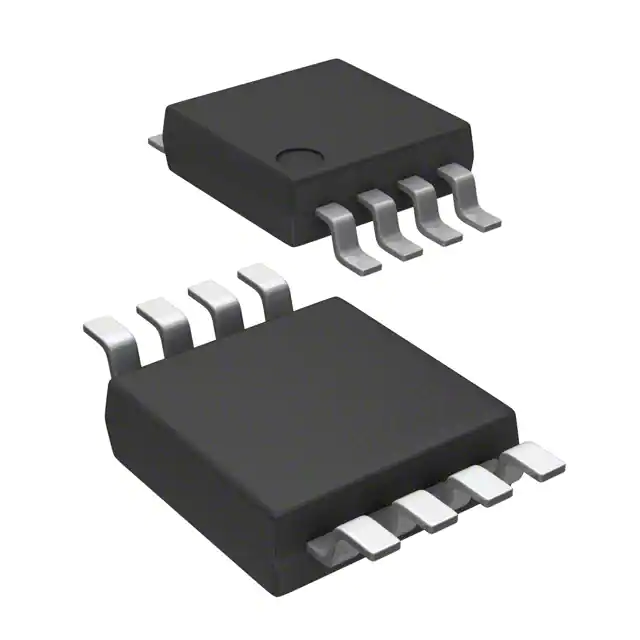

| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-uMAX/uSOP | 8-SOIC | 8-uMAX/uSOP | 8-uMAX/uSOP | 8-uMAX/uSOP | 8-uMAX/uSOP | 8-uMAX/uSOP |
