Please send RFQ , we will respond immediately.

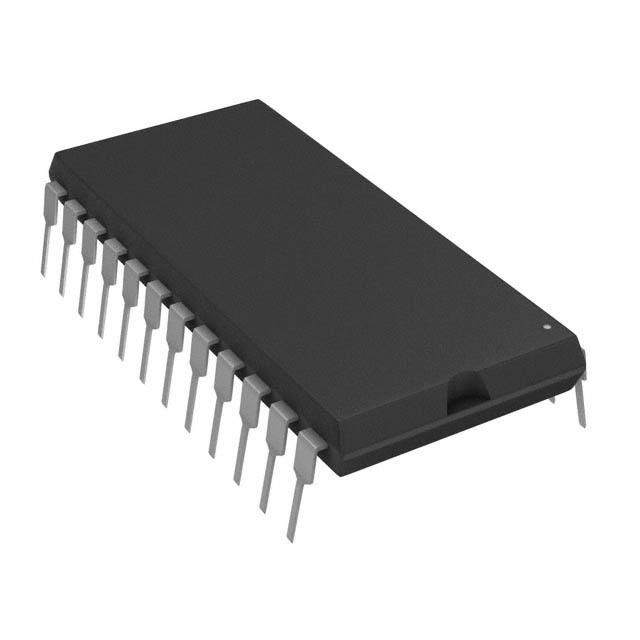

| Part Number | DS12885N+ | DS12885SN+ | DS12885Q+ | DS12885QN+ | DS12885S+ | DS12885T+ | DS12885TN+ | DS12885+ | DS12885N |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Active | Active | Obsolete | Active | Obsolete |
| Type | Clock/Calendar | Clock/Calendar | Clock/Calendar | Clock/Calendar | Clock/Calendar | Clock/Calendar | Clock/Calendar | Clock/Calendar | Clock/Calendar |
| Features | Alarm, Daylight Savings, Leap Year, NVSRAM, Square Wave Output | Alarm, Daylight Savings, Leap Year, NVSRAM, Square Wave Output | Alarm, Daylight Savings, Leap Year, NVSRAM, Square Wave Output | Alarm, Daylight Savings, Leap Year, NVSRAM, Square Wave Output | Alarm, Daylight Savings, Leap Year, NVSRAM, Square Wave Output | Alarm, Daylight Savings, Leap Year, NVSRAM, Square Wave Output | Alarm, Daylight Savings, Leap Year, NVSRAM, Square Wave Output | Alarm, Daylight Savings, Leap Year, NVSRAM, Square Wave Output | Alarm, Daylight Savings, Leap Year, NVSRAM, Square Wave Output |
| Memory Size | 114B | 114B | 114B | 114B | 114B | 114B | 114B | 114B | 114B |
| Time Format | HH:MM:SS (12/24 hr) | HH:MM:SS (12/24 hr) | HH:MM:SS (12/24 hr) | HH:MM:SS (12/24 hr) | HH:MM:SS (12/24 hr) | HH:MM:SS (12/24 hr) | HH:MM:SS (12/24 hr) | HH:MM:SS (12/24 hr) | HH:MM:SS (12/24 hr) |
| Date Format | YY-MM-DD-dd | YY-MM-DD-dd | YY-MM-DD-dd | YY-MM-DD-dd | YY-MM-DD-dd | YY-MM-DD-dd | YY-MM-DD-dd | YY-MM-DD-dd | YY-MM-DD-dd |
| Interface | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Voltage - Supply, Battery | 2.5V ~ 4V | 2.5V ~ 4V | 2.5V ~ 4V | 2.5V ~ 4V | 2.5V ~ 4V | 2.5V ~ 4V | 2.5V ~ 4V | 2.5V ~ 4V | 2.5V ~ 4V |
| Current - Timekeeping (Max) | 15mA @ 4.5V ~ 5.5V | 15mA @ 4.5V ~ 5.5V | 15mA @ 4.5V ~ 5.5V | 15mA @ 4.5V ~ 5.5V | 15mA @ 4.5V ~ 5.5V | 15mA @ 4.5V ~ 5.5V | 15mA @ 4.5V ~ 5.5V | 15mA @ 4.5V ~ 5.5V | 15mA @ 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | 0°C ~ 70°C | -40°C ~ 85°C | 0°C ~ 70°C | 0°C ~ 70°C | -40°C ~ 85°C | 0°C ~ 70°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Through Hole | Through Hole |
| Package / Case | 24-DIP (0.600", 15.24mm) | 24-SOIC (0.295", 7.50mm Width) | 28-LCC (J-Lead) | 28-LCC (J-Lead) | 24-SOIC (0.295", 7.50mm Width) | 32-TQFP | 32-TQFP | 24-DIP (0.600", 15.24mm) | 24-DIP (0.600", 15.24mm) |
| Supplier Device Package | 24-PDIP | 24-SOIC | 28-PLCC (11.51x11.51) | 28-PLCC (11.51x11.51) | 24-SOIC | 32-TQFP (7x7) | 32-TQFP (7x7) | 24-PDIP | 24-PDIP |
