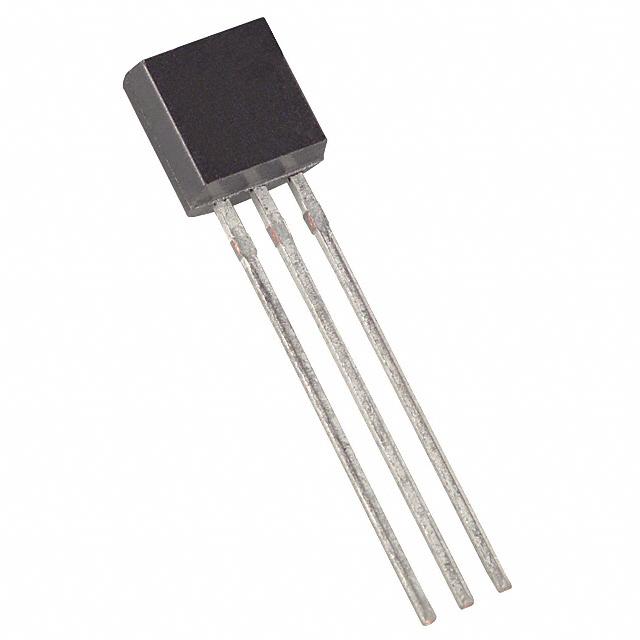

| Part Number | DS1233D-5+ | DS1233Z-5+ | DS1233DZ-5+ | DS1233M-5+ | DS1233-5+ | DS1233D-15+ | DS1233D-5 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Obsolete | Active | Active | Obsolete |
| Type | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset |
| Number of Voltages Monitored | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Threshold | 4.625V | 4.625V | 4.625V | 4.375V | 4.625V | 4.125V | 4.625V |
| Output | Open Drain or Open Collector | Open Drain or Open Collector | Open Drain or Open Collector | Open Drain or Open Collector | Open Drain or Open Collector | Open Drain or Open Collector | Open Drain or Open Collector |
| Reset | Active Low | Active Low | Active Low | Active Low | Active Low | Active Low | Active Low |
| Reset Timeout | 250ms Minimum | 250ms Minimum | 250ms Minimum | 200ms Minimum | 250ms Minimum | 250ms Minimum | 250ms Minimum |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole | Surface Mount | Surface Mount | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) | TO-261-4, TO-261AA | TO-261-4, TO-261AA | TO-226-3, TO-92-3 (TO-226AA) | TO-226-3, TO-92-3 (TO-226AA) | TO-226-3, TO-92-3 (TO-226AA) | TO-226-3, TO-92-3 (TO-226AA) |
| Supplier Device Package | TO-92-3 | SOT-223-3 | SOT-223-3 | TO-92-3 | TO-92-3 | TO-92-3 | TO-92-3 |
