Please send RFQ , we will respond immediately.

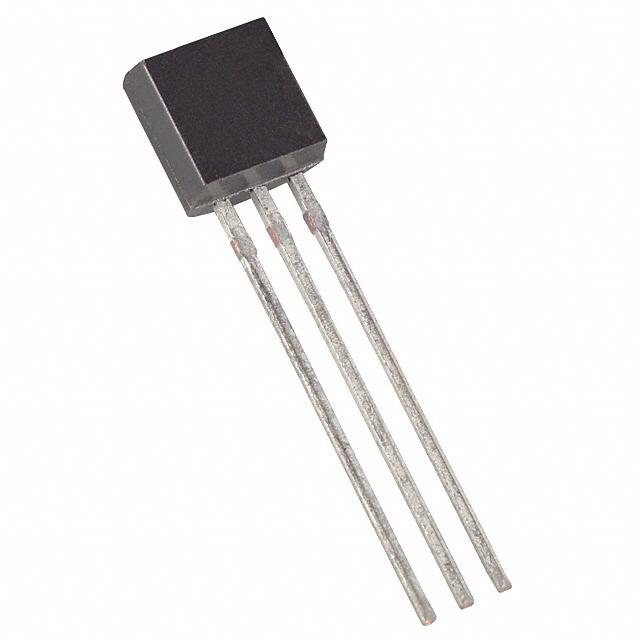

| Part Number | DS1233-10+ | DS1233Z-10+ | DS1233-15+ | DS1233A-10+ | DS1233D-10+ | DS1236-10+ | DS1233-10 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Active | Obsolete | Obsolete |
| Type | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset | Battery Backup Circuit | Simple Reset/Power-On Reset |
| Number of Voltages Monitored | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Threshold | 4.375V | 4.375V | 4.125V | 2.88V | 4.375V | 4.37V | 4.375V |
| Output | Open Drain or Open Collector | Open Drain or Open Collector | Open Drain or Open Collector | Open Drain or Open Collector | Open Drain or Open Collector | Open Drain, Push-Pull | Open Drain or Open Collector |
| Reset | Active Low | Active Low | Active Low | Active Low | Active Low | Active High/Active Low | Active Low |
| Reset Timeout | 250ms Minimum | 250ms Minimum | 250ms Minimum | 250ms Minimum | 250ms Minimum | 25ms Minimum | 250ms Minimum |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | 0°C ~ 70°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) | TO-261-4, TO-261AA | TO-226-3, TO-92-3 (TO-226AA) | TO-226-3, TO-92-3 (TO-226AA) | TO-226-3, TO-92-3 (TO-226AA) | 16-DIP (0.300", 7.62mm) | TO-226-3, TO-92-3 (TO-226AA) |
| Supplier Device Package | TO-92-3 | SOT-223-3 | TO-92-3 | TO-92-3 | TO-92-3 | 16-PDIP | TO-92-3 |
