Please send RFQ , we will respond immediately.

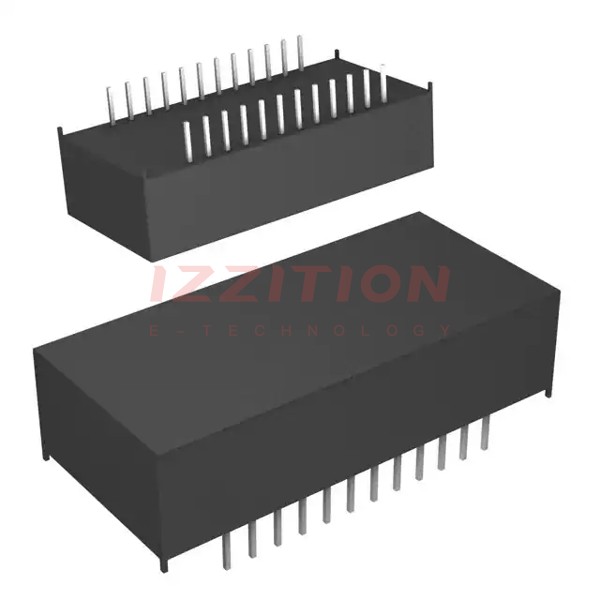

| Part Number | DS1220AB-150+ | DS1225AB-150+ | DS1220AD-150+ | DS1230AB-150+ | DS1220AB-100+ | DS1220AB-120+ | DS1220AB-150 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Active | Obsolete | Obsolete |
| Memory Type | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile |
| Memory Format | NVSRAM | NVSRAM | NVSRAM | NVSRAM | NVSRAM | NVSRAM | NVSRAM |
| Technology | NVSRAM (Non-Volatile SRAM) | NVSRAM (Non-Volatile SRAM) | NVSRAM (Non-Volatile SRAM) | NVSRAM (Non-Volatile SRAM) | NVSRAM (Non-Volatile SRAM) | NVSRAM (Non-Volatile SRAM) | NVSRAM (Non-Volatile SRAM) |
| Memory Size | 16Kb (2K x 8) | 64Kb (8K x 8) | 16Kb (2K x 8) | 256Kb (32K x 8) | 16Kb (2K x 8) | 16Kb (2K x 8) | 16Kb (2K x 8) |
| Memory Interface | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel |
| Clock Frequency | - | - | - | - | - | - | - |
| Write Cycle Time - Word, Page | 150ns | 150ns | 150ns | 150ns | 100ns | 120ns | 150ns |
| Access Time | 150 ns | 150 ns | 150 ns | 150 ns | 100 ns | 120 ns | 150 ns |
| Voltage - Supply | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.5V ~ 5.5V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 24-DIP Module (0.600", 15.24mm) | 28-DIP Module (0.600", 15.24mm) | 24-DIP Module (0.600", 15.24mm) | 28-DIP Module (0.600", 15.24mm) | 24-DIP Module (0.600", 15.24mm) | 24-DIP Module (0.600", 15.24mm) | 24-DIP Module (0.600", 15.24mm) |
| Supplier Device Package | 24-EDIP | 28-EDIP | 24-EDIP | 28-EDIP | 24-EDIP | 24-EDIP | 24-EDIP |
