Please send RFQ , we will respond immediately.
| Part Number | DS1100U-500+ | DS1100Z-500+ | DS1100U-500+T | DS1100M-500+ | DS1100U-200+ | DS1100U-300+ | DS1100U-50+ | DS1100U-500 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Obsolete | Active | Active | Active | Obsolete |
| Number of Taps/Steps | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Function | Nonprogrammable | Nonprogrammable | Nonprogrammable | Nonprogrammable | Nonprogrammable | Nonprogrammable | Nonprogrammable | Nonprogrammable |
| Delay to 1st Tap | 100ns | 100ns | 100ns | 100ns | 40ns | 60ns | 10ns | 100ns |
| Tap Increment | 100 ns | 100 ns | 100 ns | 100 ns | 40 ns | 60 ns | 10 ns | 100 ns |
| Available Total Delays | 500ns | 500ns | 500ns | 500ns | 200ns | 300ns | 50ns | 500ns |
| Number of Independent Delays | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Supply | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Through Hole | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

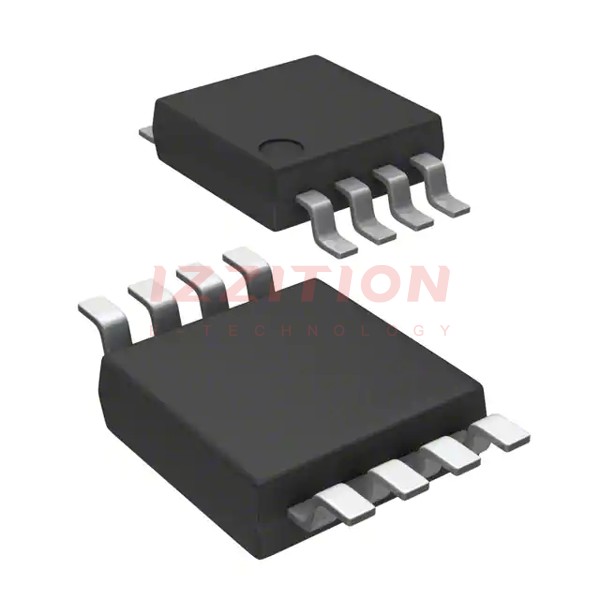

| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-DIP (0.300", 7.62mm) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-uMAX/uSOP | 8-SOIC | 8-uMAX/uSOP | 8-PDIP | 8-uMAX/uSOP | 8-uMAX/uSOP | 8-uMAX/uSOP | 8-uMAX/uSOP |
