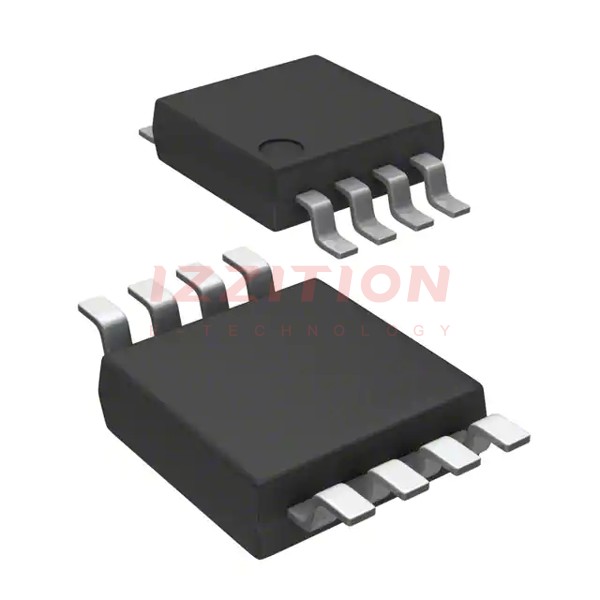

| Part Number | DS1100U-50+ | DS1100Z-50+ | DS1100U-500+ | DS1100U-60+ | DS1100U-500 | DS1100M-50+ | DS1100U-150+ | DS1100U-20+ | DS1100U-30+ | DS1100U-40+ | DS1100U-50 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Obsolete | Obsolete | Obsolete | Active | Active | Active | Discontinued at Digi-Key |
| Number of Taps/Steps | 5 | 5 | 5 | 5 | 5 | 5 | - | 5 | 5 | 5 | 5 |
| Function | Nonprogrammable | Nonprogrammable | Nonprogrammable | Nonprogrammable | Nonprogrammable | Nonprogrammable | - | Nonprogrammable | Nonprogrammable | Nonprogrammable | Nonprogrammable |
| Delay to 1st Tap | 10ns | 10ns | 100ns | 12ns | 100ns | 10ns | - | 4ns | 6ns | 8ns | 10ns |
| Tap Increment | 10 ns | 10 ns | 100 ns | 12 ns | 100 ns | 10 ns | - | 4 ns | 6 ns | 8 ns | 10 ns |
| Available Total Delays | 50ns | 50ns | 500ns | 60ns | 500ns | 50ns | - | 20ns | 30ns | 40ns | 50ns |
| Number of Independent Delays | 1 | 1 | 1 | 1 | 1 | 1 | - | 1 | 1 | 1 | 1 |
| Voltage - Supply | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | - | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | - | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Through Hole | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-DIP (0.300", 7.62mm) | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-uMAX/uSOP | 8-SOIC | 8-uMAX/uSOP | 8-uMAX/uSOP | 8-uMAX/uSOP | 8-PDIP | - | 8-uMAX/uSOP | 8-uMAX/uSOP | 8-uMAX/uSOP | 8-uMAX/uSOP |
