Please send RFQ , we will respond immediately.

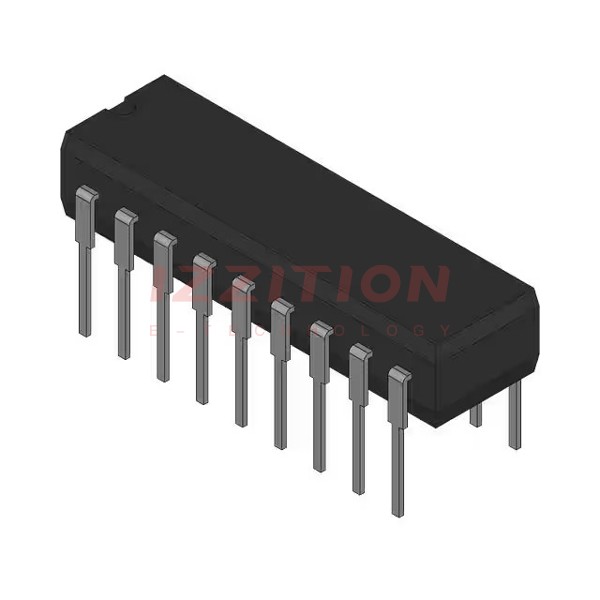

| Part Number | DG528AK | DG529AK | DG527AK |
|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Harris Corporation | Harris Corporation |
| Product Status | Active | Active | Active |
| Switch Circuit | - | - | - |
| Multiplexer/Demultiplexer Circuit | - | 4:1 | 4:1 |
| Number of Circuits | - | 2 | 2 |
| On-State Resistance (Max) | - | 400Ohm | 400Ohm |
| Channel-to-Channel Matching (ΔRon) | - | 24Ohm | 24Ohm |
| Voltage - Supply, Single (V+) | - | 44V | 44V |
| Voltage - Supply, Dual (V±) | - | 44V | 44V |
| Switch Time (Ton, Toff) (Max) | - | 1µs (Typ), 400ns (Typ) | 1.5µs, 1µs |
| -3db Bandwidth | - | - | - |
| Charge Injection | - | 4pC | 6pC |
| Channel Capacitance (CS(off), CD(off)) | - | 5pF, 12pF | 10pF, 35pF |
| Current - Leakage (IS(off)) (Max) | - | 1nA | 1nA |
| Crosstalk | - | - | - |
| Operating Temperature | - | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | - | Through Hole | Through Hole |
| Package / Case | - | 18-CDIP (0.300", 7.62mm) | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | - | 18-CERDIP | 28-CERDIP |
