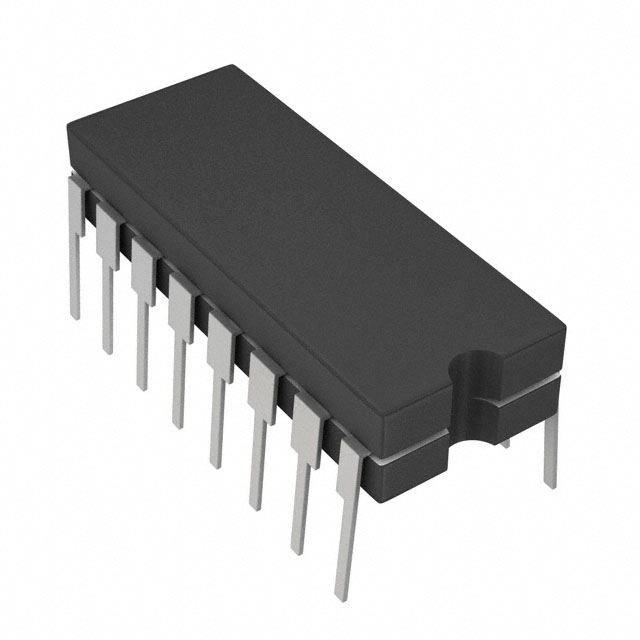

| Part Number | DG442DK | DG442DY | DG441DK | DG442DJ |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Intersil | Analog Devices Inc./Maxim Integrated | Intersil |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Switch Circuit | SPST - NO | SPST - NO | SPST - NC | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 | 8:1 | 1:1 |
| Number of Circuits | 4 | 4 | 8 | 4 |
| On-State Resistance (Max) | 85Ohm | 85Ohm | 85Ohm | 85Ohm |
| Channel-to-Channel Matching (ΔRon) | 4Ohm (Max) | 4Ohm (Max) | 100mOhm | - |
| Voltage - Supply, Single (V+) | 10V ~ 30V | 12V | 13V ~ 36V | 5V ~ 34V, ±5V ~ 22V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V | ±15V | ±7V ~ 22V | 5V ~ 34V, ±5V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 250ns, 170ns | 250ns, 210ns | 250ns, 120ns | 250ns, 210ns |
| -3db Bandwidth | - | - | - | - |
| Charge Injection | 5pC | -1pC | 5pC | -1pC |
| Channel Capacitance (CS(off), CD(off)) | 4pF, 4pF | 4pF, 4pF | 4pF | 4pF, 4pF |
| Current - Leakage (IS(off)) (Max) | 500pA | 500pA | 150nA | 500pA |
| Crosstalk | -100dB @ 1MHz | -100dB @ 1MHz | -100dB @ 1MHz | -100dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) | 16-SOIC (0.154", 3.90mm Width) | 16-CDIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CDIP | 16-SOIC | 16-CDIP | 16-PDIP |
