Please send RFQ , we will respond immediately.

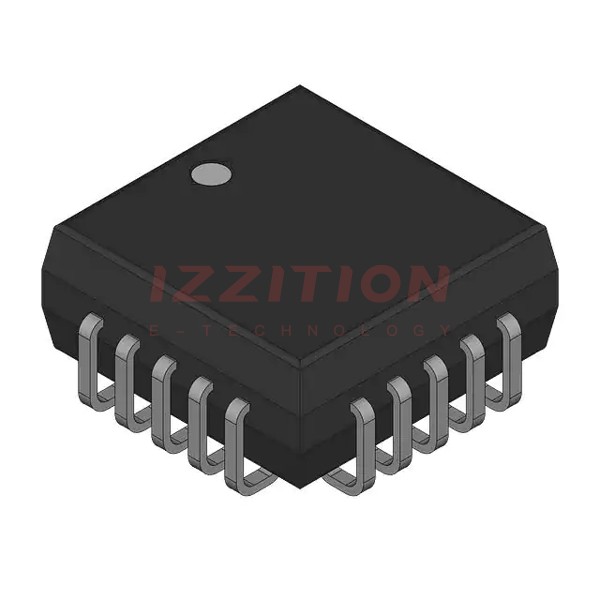

| Part Number | DG423DN | DG429DN | DG428DN | DG423DJ |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Vishay Siliconix | Vishay Siliconix | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Obsolete | Obsolete | Active |
| Switch Circuit | - | SP4T | - | - |
| Multiplexer/Demultiplexer Circuit | - | 4:1 | 8:1 | - |
| Number of Circuits | - | 2 | 1 | - |
| On-State Resistance (Max) | - | 100Ohm | 100Ohm | - |
| Channel-to-Channel Matching (ΔRon) | - | 5Ohm | 5Ohm | - |
| Voltage - Supply, Single (V+) | - | 12V | 12V | - |
| Voltage - Supply, Dual (V±) | - | ±15V | ±15V | - |
| Switch Time (Ton, Toff) (Max) | - | 150ns, 150ns | 150ns, 150ns | - |
| -3db Bandwidth | - | - | - | - |
| Charge Injection | - | 1pC | 1pC | - |
| Channel Capacitance (CS(off), CD(off)) | - | 11pF, 20pF | 11pF, 40pF | - |
| Current - Leakage (IS(off)) (Max) | - | 500pA | 500pA | - |
| Crosstalk | - | - | - | - |
| Operating Temperature | - | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | - |
| Mounting Type | - | Surface Mount | Surface Mount | - |
| Package / Case | - | 20-LCC (J-Lead) | 20-LCC (J-Lead) | - |
| Supplier Device Package | - | 20-PLCC (9x9) | 20-PLCC (9x9) | - |
