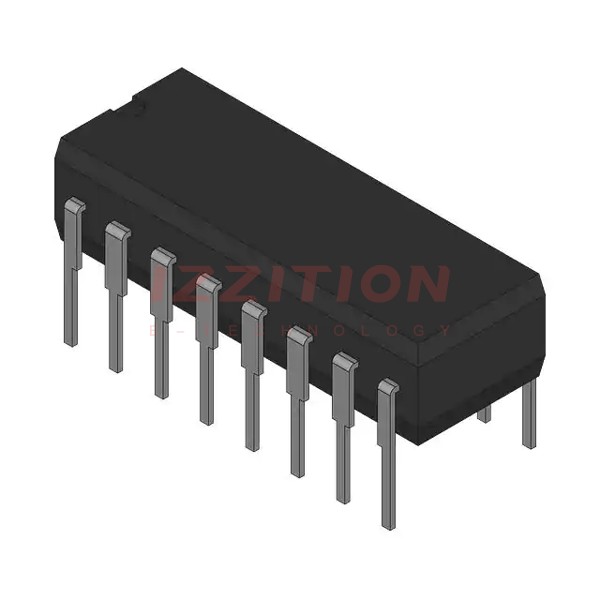

| Part Number | DG411DJ | DG411DJZ | DG412DJ | DG411DJ+ | DG411DY | DG411EJ | DG411LDJ | DG411DK |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Renesas Electronics America Inc | Intersil | Analog Devices Inc./Maxim Integrated | Intersil | Harris Corporation | Vishay Siliconix | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Active | Obsolete | Active | Obsolete | Active | Obsolete | Obsolete |
| Switch Circuit | SPST - NC | SPST - NC | SPST - NO | SPST - NC | SPST - NC | SPST | SPST - NC | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 8:1 |
| Number of Circuits | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| On-State Resistance (Max) | 35Ohm | 35Ohm | 35Ohm | 45Ohm | 35Ohm | 35Ohm | 17Ohm | 35Ohm |
| Channel-to-Channel Matching (ΔRon) | - | - | - | 3Ohm (Max) | - | - | - | 100mOhm |
| Voltage - Supply, Single (V+) | 5V ~ 44V | 5V ~ 44V | 5V ~ 44V | 10V ~ 30V | 5V ~ 44V | ±15V | 2.7V ~ 12V | 13V ~ 44V |
| Voltage - Supply, Dual (V±) | ±5V ~ 20V | ±5V ~ 20V | ±5V ~ 20V | ±4.5V ~ 20V | ±5V ~ 20V | ±15V | ±3V ~ 6V | ±7V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 175ns, 145ns | 175ns, 145ns | 175ns, 145ns | 175ns, 145ns | 175ns, 145ns | 145ns, 145ns | 19ns, 12ns | 175ns, 145ns |
| -3db Bandwidth | - | - | - | - | - | - | 280MHz | - |
| Charge Injection | 5pC | 5pC | 5pC | 5pC | 5pC | 5pC | 5pC | 5pC |
| Channel Capacitance (CS(off), CD(off)) | 9pF, 9pF | 9pF, 9pF | 9pF, 9pF | 9pF, 9pF | 9pF, 9pF | 9pF, 9pF | 5pF, 6pF | 9pF |
| Current - Leakage (IS(off)) (Max) | 250pA | 100pA | 250pA | 250pA | 250pA | 250pA | 250pA | 150nA |
| Crosstalk | -85dB @ 1MHz | -85dB @ 1MHz | -85dB @ 1MHz | -85dB @ 1MHz | -85dB @ 1MHz | -85dB @ 1MHz | -95dB @ 1MHz | -85dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 16-SOIC (0.154", 3.90mm Width) | 16-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP | 16-PDIP | 16-PDIP | 16-PDIP | 16-SOIC | 16-PDIP | 16-PDIP | 16-CDIP |
