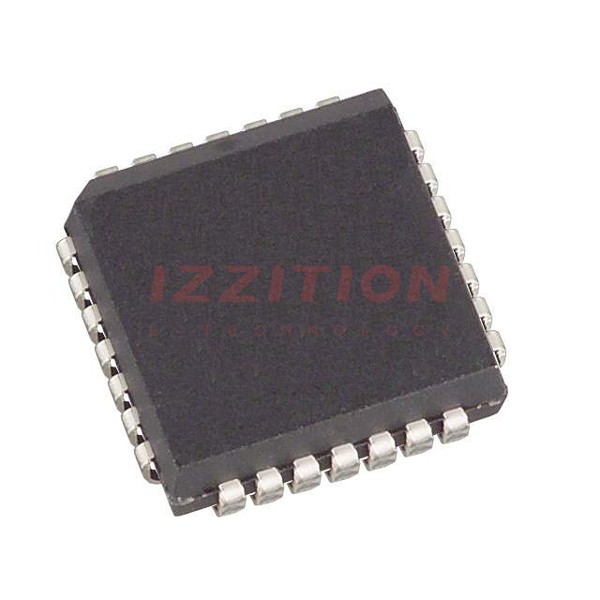

| Part Number | DG407DN+ | DG407DN+T | DG406DN+ | DG407DJ+ | DG407DN |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Obsolete |
| Switch Circuit | - | - | - | - | - |
| Multiplexer/Demultiplexer Circuit | 8:1 | 8:1 | 16:1 | 8:1 | 8:1 |
| Number of Circuits | 2 | 2 | 1 | 2 | 2 |
| On-State Resistance (Max) | 100Ohm | 100Ohm | 100Ohm | 100Ohm | 100Ohm |
| Channel-to-Channel Matching (ΔRon) | 1.5Ohm | 1.5Ohm | 1.5Ohm | 1.5Ohm | 1.5Ohm |
| Voltage - Supply, Single (V+) | 5V ~ 30V | 5V ~ 30V | 5V ~ 30V | 5V ~ 30V | 5V ~ 30V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V | ±4.5V ~ 20V | ±4.5V ~ 20V | ±4.5V ~ 20V | ±4.5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 200ns, 150ns | 200ns, 150ns | 200ns, 150ns | 200ns, 150ns | 200ns, 150ns |
| -3db Bandwidth | - | - | - | - | - |
| Charge Injection | 2pC | 2pC | 2pC | 2pC | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 8pF, 65pF | 8pF, 65pF | 8pF, 130pF | 8pF, 65pF | 8pF, 65pF |
| Current - Leakage (IS(off)) (Max) | 500pA | 500pA | 500pA | 500pA | 500pA |
| Crosstalk | -92dB @ 100kHz | -92dB @ 100kHz | -92dB @ 100kHz | -92dB @ 100kHz | -92dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Through Hole | Surface Mount |
| Package / Case | 28-LCC (J-Lead) | 28-LCC (J-Lead) | 28-LCC (J-Lead) | 28-DIP (0.600", 15.24mm) | 28-LCC (J-Lead) |
| Supplier Device Package | 28-PLCC (11.51x11.51) | 28-PLCC (11.51x11.51) | 28-PLCC (11.51x11.51) | 28-PDIP | 28-PLCC (11.51x11.51) |
