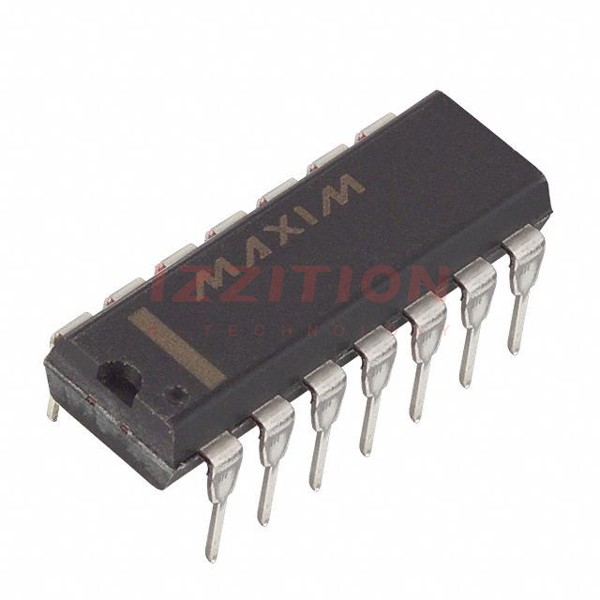

| Part Number | DG305ACJ+ | DG307ACJ+ | DG308ACJ+ | DG300ACJ+ | DG301ACJ+ | DG302ACJ+ | DG303ACJ+ | DG304ACJ+ | DG305ACJ |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Last Time Buy | Active | Active | Active | Active | Active | Obsolete |
| Switch Circuit | SPDT | SPDT | SPST - NO | SPST - NO | SPDT | DPST - NO | SPDT | SPST - NO | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 | 2:1 | 1:1 | 1:1 | 2:1 | 2:1 | 2:1 | 1:1 | 2:1 |
| Number of Circuits | 1 | 2 | 4 | 2 | 1 | 2 | 2 | 2 | 1 |
| On-State Resistance (Max) | 50Ohm | 50Ohm | 100Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Channel-to-Channel Matching (ΔRon) | - | - | - | - | - | - | - | - | - |
| Voltage - Supply, Single (V+) | - | - | 5V ~ 30V | - | - | - | - | - | - |
| Voltage - Supply, Dual (V±) | ±5V ~ 18V | ±5V ~ 18V | ±5V ~ 20V | ±5V ~ 18V | ±5V ~ 18V | ±5V ~ 18V | ±5V ~ 18V | ±5V ~ 18V | ±5V ~ 18V |
| Switch Time (Ton, Toff) (Max) | 250ns, 150ns | 250ns, 150ns | 250ns, 150ns | 300ns, 250ns | 300ns, 250ns | 300ns, 250ns | 300ns, 250ns | 250ns, 150ns | 250ns, 150ns |
| -3db Bandwidth | - | - | - | - | - | - | - | - | - |
| Charge Injection | 12pC | 12pC | -10pC | 12pC | 12pC | 12pC | 12pC | 12pC | 12pC |
| Channel Capacitance (CS(off), CD(off)) | 14pF, 14pF | 14pF, 14pF | 11pF, 8pF | 14pF, 14pF | 14pF, 14pF | 14pF, 14pF | 14pF, 14pF | 14pF, 14pF | 14pF, 14pF |
| Current - Leakage (IS(off)) (Max) | 5nA | 5nA | 5nA | 5nA | 5nA | 5nA | 5nA | 5nA | 5nA |
| Crosstalk | -74dB @ 500kHz | -74dB @ 500kHz | - | -74dB @ 500kHz | -74dB @ 500kHz | -74dB @ 500kHz | -74dB @ 500kHz | -74dB @ 500kHz | -74dB @ 500kHz |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) |
| Supplier Device Package | 14-PDIP | 14-PDIP | 16-PDIP | 14-PDIP | 14-PDIP | 14-PDIP | 14-PDIP | 14-PDIP | 14-PDIP |
