Home
All Products
Development Boards, Kits, Programmers
Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
DC1566A

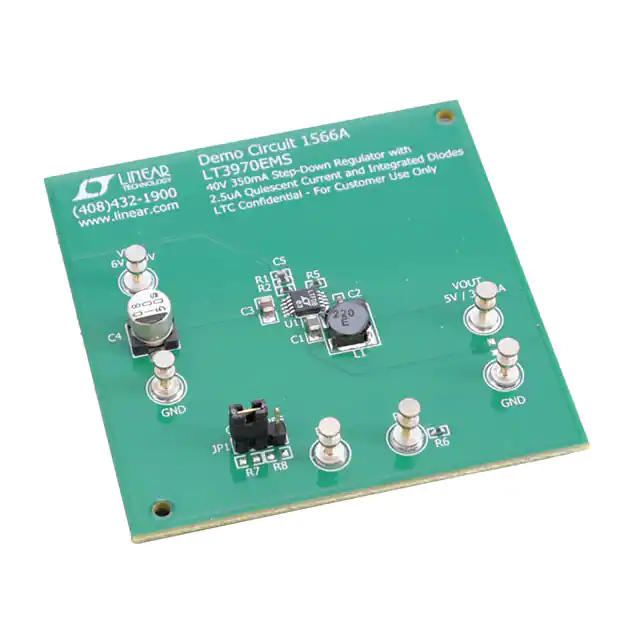

DC1566A Image
×
Favorite
Compare
Add to RFQ
Share:
Analog Devices Inc. DC1566A
Manufacturer No:
DC1566A
Manufacturer:
Analog Devices Inc.
Package:
Box
Datasheet:
DC1566A Datasheet
ECAD Model:
-
Description:
BOARD DEMO FOR LT3970EMS
Delivery:
Payment:
Product Attributes
Main Purpose:
DC/DC, Step Down
Outputs and Type:
1, Non-Isolated
Power - Output:
-
Voltage - Output:
5V
Current - Output:
350mA
Voltage - Input:
6V ~ 40V
Regulator Topology:
Buck
Frequency - Switching:
600kHz
Board Type:
Fully Populated
Supplied Contents:
Board(s)
Utilized IC / Part:
LT3970
0
Remaining
View Similar
In Stock
UnitPrice:
$81.71
Quantity:
3
Please send RFQ , we will respond immediately.
