Please send RFQ , we will respond immediately.

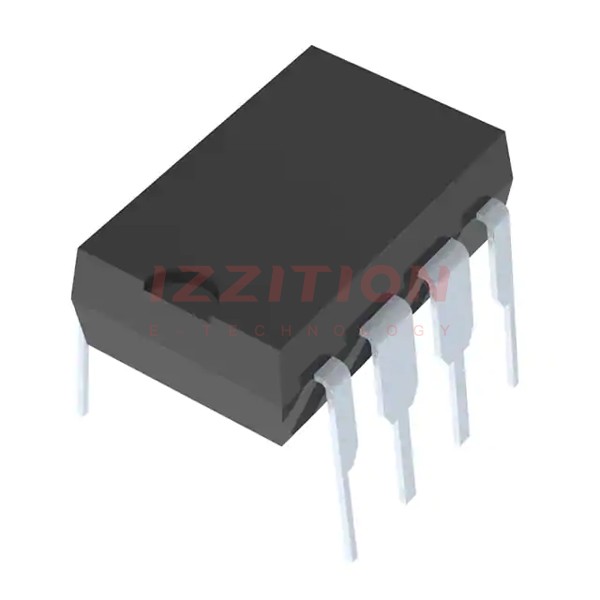

| Part Number | DAC8512FPZ | DAC8512FZ | DAC8512FSZ | DAC8562FPZ | DAC8412FPZ | DAC8512EPZ | DAC8512FP |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Obsolete |
| Number of Bits | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Number of D/A Converters | 1 | 1 | 1 | 1 | 4 | 1 | 1 |
| Settling Time | 16µs (Typ) | 16µs (Typ) | 16µs (Typ) | 16µs (Typ) | 10µs (Typ) | 16µs (Typ) | 16µs (Typ) |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No | No | No | No | No |
| Data Interface | SPI, DSP | DSP, SPI | SPI, DSP | Parallel | Parallel | SPI, DSP | SPI, DSP |
| Reference Type | Internal | Internal | Internal | Internal | External | Internal | Internal |
| Voltage - Supply, Analog | 5V | 5V | 5V | 5V | 5V ~ 15V, -15V | 5V | 5V |
| Voltage - Supply, Digital | 5V | 5V | 5V | 5V | 5V | 5V | 5V |
| INL/DNL (LSB) | ±0.75, ±0.75 | ±0.75LSB, ±0.75LSB | ±0.75, ±0.75 | ±0.75, ±0.75 | ±2 (Max), -1 | ±0.25, ±0.75 | ±0.75, ±0.75 |
| Architecture | R-2R | R-2R | R-2R | R-2R | R-2R | R-2R | R-2R |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 8-DIP (0.300", 7.62mm) | 8-CDIP (0.300", 7.62mm) | 8-SOIC (0.154", 3.90mm Width) | 20-DIP (0.300", 7.62mm) | 28-DIP (0.600", 15.24mm) | 8-DIP (0.300", 7.62mm) | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP | 8-CERDIP | 8-SOIC | 20-PDIP | 28-PDIP | 8-PDIP | 8-PDIP |
| Mounting Type | Through Hole | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole | Through Hole |
