| Part Number | DAC8426FP | DAC8426FR | DAC8426FPZ | DAC8426FS | DAC8420FP | DAC8426EP |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete | Active |
| Number of Bits | 8 | 8 | 8 | 8 | 12 | 8 |
| Number of D/A Converters | 4 | 4 | 4 | 4 | 4 | 4 |
| Settling Time | 3µs (Typ) | 3µs (Typ) | 3µs (Typ) | 3µs (Typ) | 13µs (Typ) | 3µs (Typ) |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No | No | No | No |
| Data Interface | Parallel | Parallel | Parallel | Parallel | SPI | Parallel |
| Reference Type | Internal | Internal | Internal | Internal | External | Internal |
| Voltage - Supply, Analog | 13.5V ~ 16.5V | - | 13.5V ~ 16.5V | 13.5V ~ 16.5V | 5V ~ 15V, -15V | - |
| Voltage - Supply, Digital | 13.5V ~ 16.5V | - | 13.5V ~ 16.5V | 13.5V ~ 16.5V | 5V | - |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) | ±0.5 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±1, ±0.25 | ±0.5 (Max), ±1 (Max) |
| Architecture | R-2R | R-2R | R-2R | R-2R | R-2R | R-2R |
| Operating Temperature | -40°C ~ 85°C | -55°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -55°C ~ 125°C |

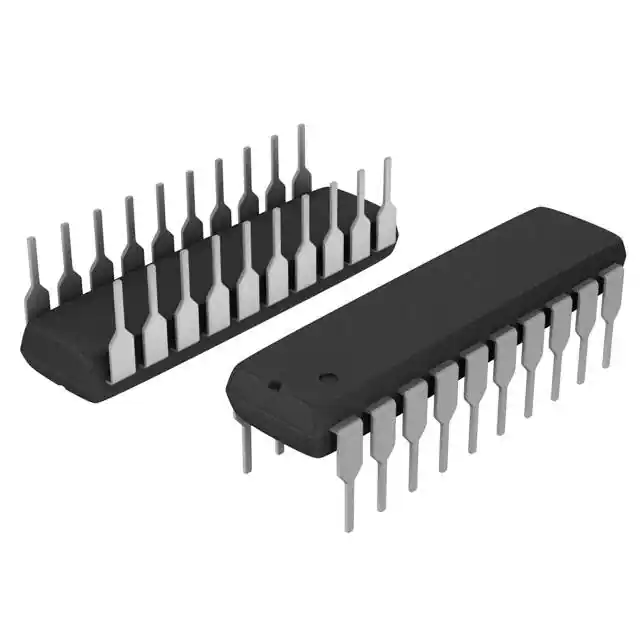

| Package / Case | 20-DIP (0.300", 7.62mm) | 20-CDIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 20-SOIC (0.295", 7.50mm Width) | 16-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP | 20-CERDIP | 20-PDIP | 20-SOIC | 16-PDIP | 20-DIP |
| Mounting Type | Through Hole | Through Hole | Through Hole | Surface Mount | Through Hole | Through Hole |
