Please send RFQ , we will respond immediately.

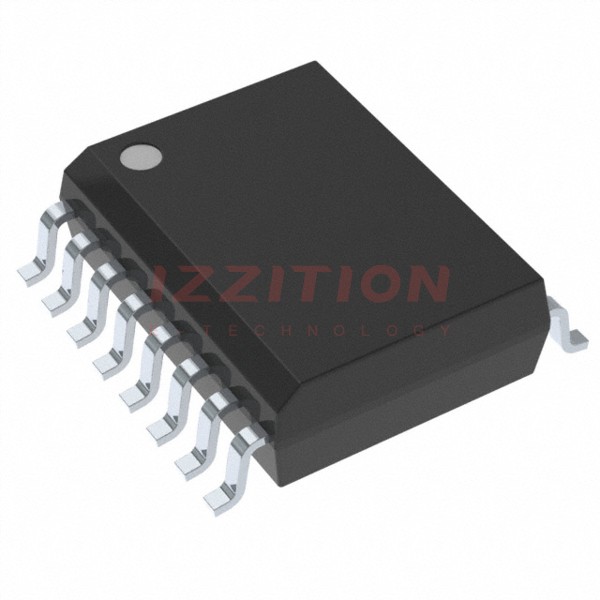

| Part Number | DAC8420FSZ | DAC8426FSZ | DAC8420ESZ | DAC8420FPZ | DAC8420FS |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Obsolete |
| Number of Bits | 12 | 8 | 12 | 12 | 12 |
| Number of D/A Converters | 4 | 4 | 4 | 4 | 4 |
| Settling Time | 13µs (Typ) | 3µs (Typ) | 13µs (Typ) | 13µs (Typ) | 13µs (Typ) |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No | No | No |
| Data Interface | SPI | Parallel | SPI | SPI | SPI |
| Reference Type | External | Internal | External | External | External |
| Voltage - Supply, Analog | 5V ~ 15V, -15V | 13.5V ~ 16.5V | 5V ~ 15V, -15V | 5V ~ 15V, -15V | 5V ~ 15V, -15V |
| Voltage - Supply, Digital | 5V | 13.5V ~ 16.5V | 5V | 5V | 5V |
| INL/DNL (LSB) | ±1, ±0.25 | ±1 (Max), ±1 (Max) | ±0.5, ±0.25 | ±1, ±0.25 | ±1, ±0.25 |
| Architecture | R-2R | R-2R | R-2R | R-2R | R-2R |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) | 20-SOIC (0.295", 7.50mm Width) | 16-SOIC (0.295", 7.50mm Width) | 16-DIP (0.300", 7.62mm) | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC | 20-SOIC | 16-SOIC | 16-PDIP | 16-SOIC |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Through Hole | Surface Mount |
