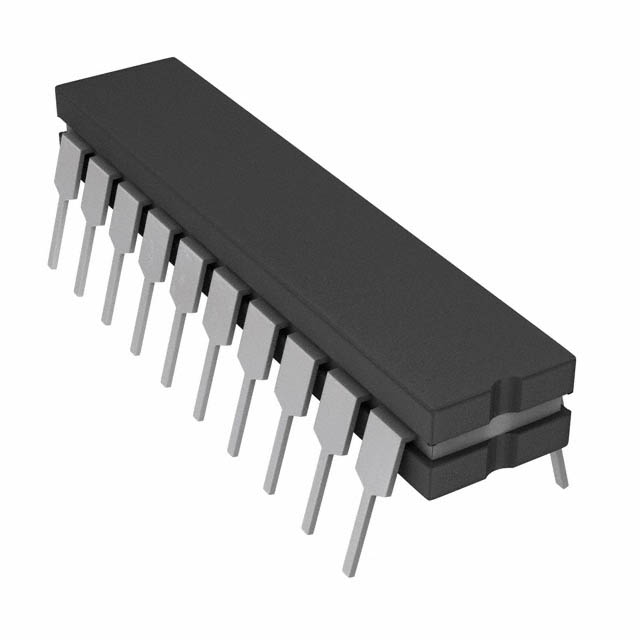

| Part Number | DAC312FR | DAC312BR | DAC312ER |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Number of Bits | 12 | 12 | 12 |
| Number of D/A Converters | 1 | 1 | 1 |
| Settling Time | 500ns | 500ns | 500ns |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | Yes | Yes | Yes |
| Data Interface | Parallel | Parallel | Parallel |
| Reference Type | External | External | External |
| Voltage - Supply, Analog | 4.5V ~ 18V, -10.8V ~ 18V | 4.5V ~ 18V | 4.5V ~ 18V, -10.8V ~ 18V |
| Voltage - Supply, Digital | 20V ~ 36V | 4.5V ~ 18V | 20V ~ 36V |
| INL/DNL (LSB) | -, ±1 (Max) | ±1 | ±0.5 (Max), - |
| Architecture | R-2R | Multiplying DAC, R-2R | R-2R |
| Operating Temperature | -40°C ~ 85°C | -55°C ~ 125°C | 0°C ~ 70°C |
| Package / Case | 20-CDIP (0.300", 7.62mm) | 20-CDIP (0.300", 7.62mm) | 20-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 20-CERDIP | 20-CERDIP | 20-CERDIP |
| Mounting Type | Through Hole | Through Hole | Through Hole |
