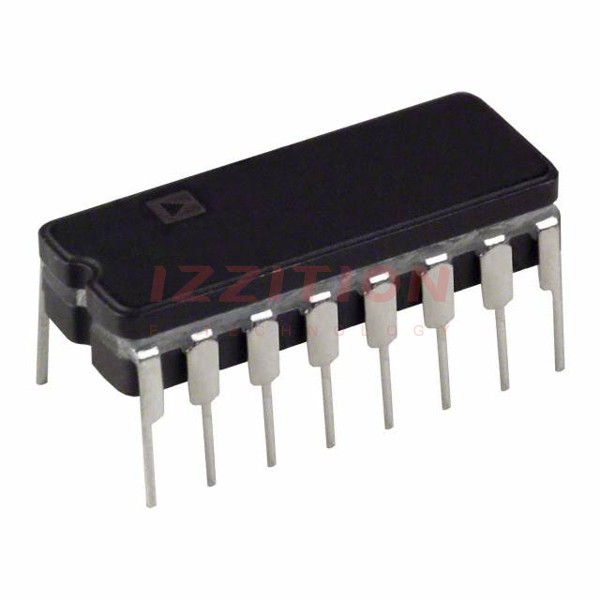

| Part Number | DAC08AQ | DAC08CQ | DAC08HQ | DAC08EQ | DAC08Q |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Number of Bits | 8 | 8 | 8 | 8 | 8 |
| Number of D/A Converters | 1 | 1 | 1 | 1 | 1 |
| Settling Time | 135µs | 150µs | 135µs | 150µs | 135µs |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | Yes | No | Yes | Yes | Yes |
| Data Interface | Parallel | Parallel | Parallel | Parallel | Parallel |
| Reference Type | External | External | External | External | External |
| Voltage - Supply, Analog | ±4.5V ~ 18V | ±4.5V ~ 18V | ±4.5V ~ 18V | ±4.5V ~ 18V | ±4.5V ~ 18V |
| Voltage - Supply, Digital | 9V ~ 36V | 9V ~ 36V | 9V ~ 36V | 9V ~ 36V | 9V ~ 36V |
| INL/DNL (LSB) | - | - | - | - | - |
| Architecture | Multiplying DAC | Multiplying DAC | Multiplying DAC | Multiplying DAC | Multiplying DAC |
| Operating Temperature | -55°C ~ 125°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | -55°C ~ 125°C |
| Package / Case | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CERDIP | 16-CERDIP | 16-CERDIP | 16-CERDIP | 16-CERDIP |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
