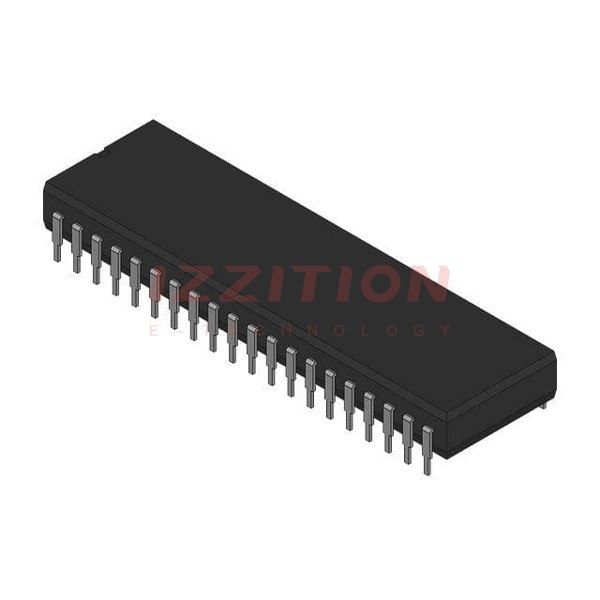

| Part Number | ADV7121KN50 | ADV7121KN80 | ADV7120KN50 | ADV7121KN30 |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active |
| Number of Bits | 10 | 10 | 8 | 10 |
| Number of D/A Converters | 3 | 3 | 3 | 3 |
| Settling Time | - | - | - | - |
| Output Type | Current - Buffered | Current - Buffered | Current - Unbuffered | Current - Buffered |
| Differential Output | No | No | No | No |
| Data Interface | - | - | Parallel | - |
| Reference Type | External | External | External | External |
| Voltage - Supply, Analog | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V |
| INL/DNL (LSB) | ±2, ±1 | ±2, ±1 | ±1 (Max), ±0.5 (Max) | ±2, ±1 |
| Architecture | Pipelined | Pipelined | Current Source | Pipelined |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Package / Case | 40-DIP (0.600", 15.24mm) | 40-DIP (0.600", 15.24mm) | 40-DIP (0.600", 15.24mm) | 40-DIP (0.600", 15.24mm) |
| Supplier Device Package | 40-PDIP | 40-PDIP | 40-PDIP | 40-PDIP |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
