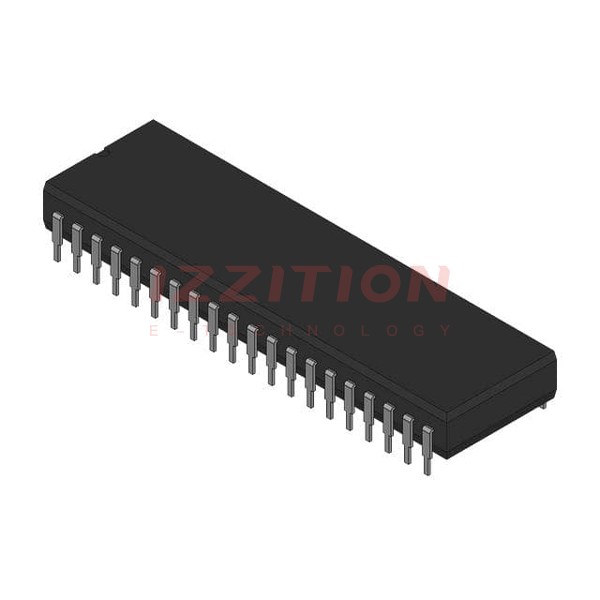

| Part Number | ADV7120KN50 | ADV7121KN50 | ADV7120KN80 | ADV7120KP50 | ADV7120KN30 |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Obsolete | Active |
| Number of Bits | 8 | 10 | 8 | - | 8 |
| Number of D/A Converters | 3 | 3 | 3 | - | 3 |
| Settling Time | - | - | - | - | - |
| Output Type | Current - Unbuffered | Current - Buffered | Current - Unbuffered | - | Current - Unbuffered |
| Differential Output | No | No | No | - | No |
| Data Interface | Parallel | - | Parallel | - | Parallel |
| Reference Type | External | External | External | - | External |
| Voltage - Supply, Analog | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | - | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | - | 4.75V ~ 5.25V |
| INL/DNL (LSB) | ±1 (Max), ±0.5 (Max) | ±2, ±1 | ±1 (Max), ±0.5 (Max) | - | ±1 (Max), ±0.5 (Max) |
| Architecture | Current Source | Pipelined | Current Source | - | Current Source |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | - | 0°C ~ 70°C |
| Package / Case | 40-DIP (0.600", 15.24mm) | 40-DIP (0.600", 15.24mm) | 40-DIP (0.600", 15.24mm) | 44-LCC (J-Lead) | 40-DIP (0.600", 15.24mm) |
| Supplier Device Package | 40-PDIP | 40-PDIP | 40-PDIP | 44-PLCC (16.59x16.59) | 40-PDIP |
| Mounting Type | Through Hole | Through Hole | Through Hole | Surface Mount | Through Hole |
