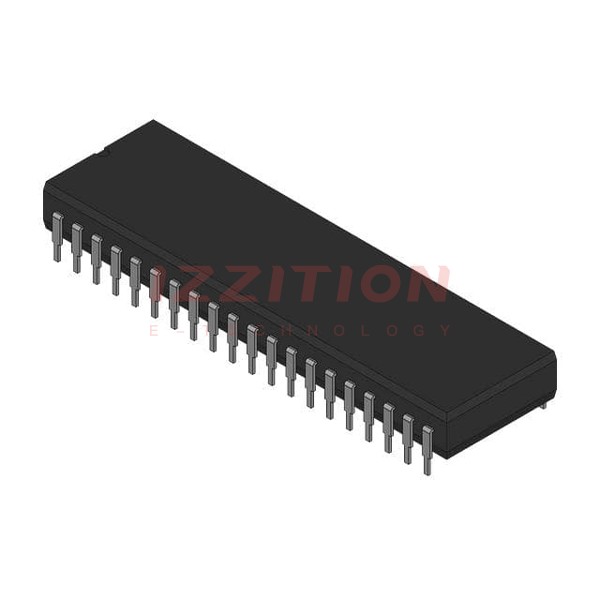

| Part Number | ADV7120KN30 | ADV7120KN50 | ADV7120KN80 | ADV7121KN30 | ADV7120KP30 |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Obsolete |
| Number of Bits | 8 | 8 | 8 | 10 | - |
| Number of D/A Converters | 3 | 3 | 3 | 3 | - |
| Settling Time | - | - | - | - | - |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Buffered | - |
| Differential Output | No | No | No | No | - |
| Data Interface | Parallel | Parallel | Parallel | - | - |
| Reference Type | External | External | External | External | - |
| Voltage - Supply, Analog | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | - |
| Voltage - Supply, Digital | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | - |
| INL/DNL (LSB) | ±1 (Max), ±0.5 (Max) | ±1 (Max), ±0.5 (Max) | ±1 (Max), ±0.5 (Max) | ±2, ±1 | - |
| Architecture | Current Source | Current Source | Current Source | Pipelined | - |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | - |
| Package / Case | 40-DIP (0.600", 15.24mm) | 40-DIP (0.600", 15.24mm) | 40-DIP (0.600", 15.24mm) | 40-DIP (0.600", 15.24mm) | 44-LCC (J-Lead) |
| Supplier Device Package | 40-PDIP | 40-PDIP | 40-PDIP | 40-PDIP | 44-PLCC (16.59x16.59) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount |
