Please send RFQ , we will respond immediately.

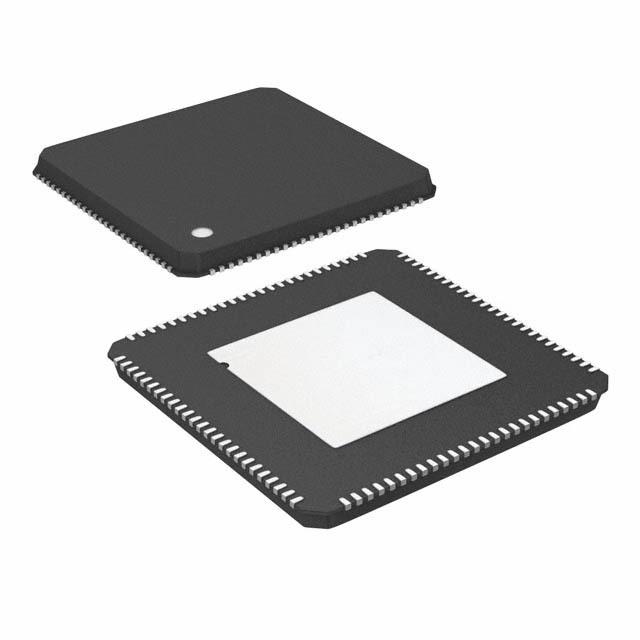

| Part Number | ADV3226ACPZ | ADV3229ACPZ | ADV3227ACPZ | ADV3228ACPZ | ADV3224ACPZ | ADV3225ACPZ |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Applications | Telecommunications, Video | Telecommunications, Video | Telecommunications, Video | Telecommunications, Video | Telecommunications, Video | Telecommunications, Video |
| Multiplexer/Demultiplexer Circuit | 16:16 | 8:8 | 16:16 | 8:8 | 16:8 | 16:8 |
| Switch Circuit | - | - | - | - | - | - |
| Number of Channels | 1 | 1 | 1 | 1 | 1 | 1 |
| On-State Resistance (Max) | - | - | - | - | - | - |
| Voltage - Supply, Single (V+) | - | - | - | - | - | - |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 5.5V | ±4.5V ~ 5.5V | ±4.5V ~ 5.5V | ±4.5V ~ 5.5V | ±4.5V ~ 5.5V | ±4.5V ~ 5.5V |
| -3db Bandwidth | 820MHz | 900MHz | 750MHz | 1.2GHz | 1.2GHz | 900MHz |
| Features | Buffered | Buffered | Buffered | Buffered | Buffered | Buffered |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 100-VFQFN Exposed Pad | 72-VFQFN Exposed Pad, CSP | 100-VFQFN Exposed Pad | 72-VFQFN Exposed Pad, CSP | 72-VFQFN Exposed Pad, CSP | 72-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 100-LFCSP-VQ (12x12) | 72-LFCSP-VQ (10x10) | 100-LFCSP-VQ (12x12) | 72-LFCSP-VQ (10x10) | 72-LFCSP-VQ (10x10) | 72-LFCSP-VQ (10x10) |
