Please send RFQ , we will respond immediately.
| Part Number | ADV101KN50 | ADV101KP50 | ADV101KN80 | ADV101KN30 |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active |
| Number of Bits | 8 | 8 | 8 | 8 |
| Number of D/A Converters | 3 | 3 | 3 | 3 |
| Settling Time | - | - | - | - |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | No | No | No | No |
| Data Interface | Parallel | Parallel | Parallel | Parallel |
| Reference Type | External | External | External | External |
| Voltage - Supply, Analog | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V |
| INL/DNL (LSB) | ±1 (Max), ±0.5 (Max) | ±1 (Max), ±0.5 (Max) | ±1 (Max), ±0.5 (Max) | ±1 (Max), ±0.5 (Max) |
| Architecture | Pipelined | Pipelined | Pipelined | Pipelined |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |

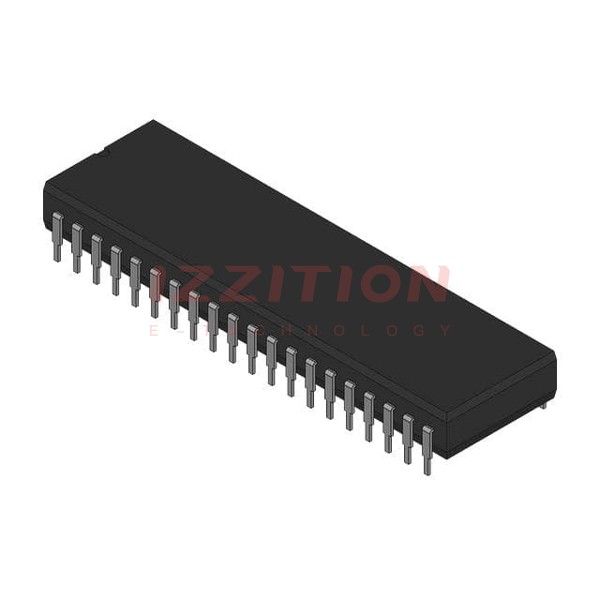

| Package / Case | 40-DIP (0.600", 15.24mm) | 44-LCC (J-Lead) | 40-DIP (0.600", 15.24mm) | 40-DIP (0.600", 15.24mm) |
| Supplier Device Package | 40-PDIP | 44-PLCC (16.59x16.59) | 40-PDIP | 40-PDIP |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole |
