ADUM7643ARQZ
  • Share:

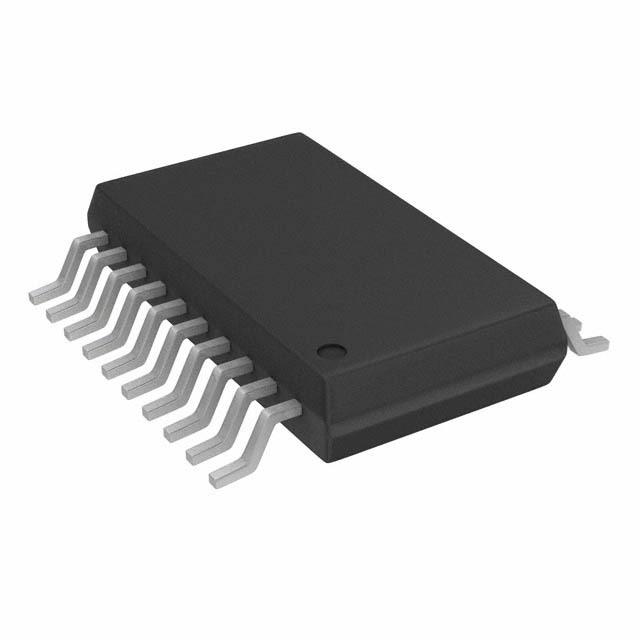

Analog Devices Inc. ADUM7643ARQZ

Manufacturer No:
ADUM7643ARQZ
Manufacturer:
Analog Devices Inc.
Package:
Tube
Datasheet:
ADUM7643ARQZ Datasheet
ECAD Model:
-
Description:
DGTL ISO 1000VRMS 6CH GP 20QSOP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Technology:Magnetic Coupling
Type:General Purpose
Isolated Power:No
Number of Channels:6
Inputs - Side 1/Side 2:3/3
Channel Type:Unidirectional
Voltage - Isolation:1000Vrms
Common Mode Transient Immunity (Min):15kV/µs
Data Rate:1Mbps
Propagation Delay tpLH / tpHL (Max):75ns, 75ns
Pulse Width Distortion (Max):25ns
Rise / Fall Time (Typ):2ns, 2ns
Voltage - Supply:3V ~ 5.5V
Operating Temperature:-40°C ~ 105°C
Mounting Type:Surface Mount
Package / Case:20-SSOP (0.154", 3.90mm Width)
Supplier Device Package:20-QSOP
0 Remaining View Similar

In Stock

$6.69
145

Please send RFQ , we will respond immediately.
